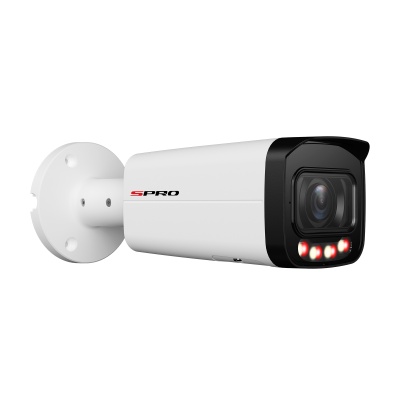

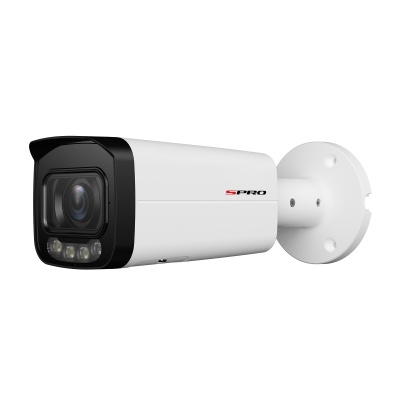

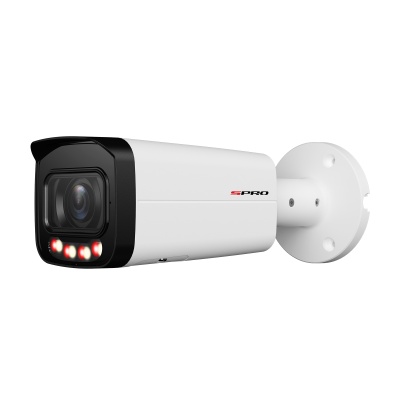

The SPRO DHIPQ80/ALRW-M is a high-performance 8MP IP bullet camera designed for professional-grade surveillance in commercial and industrial environments. Featuring a motorised lens, integrated microphone, and dual illumination, this camera delivers outstanding clarity and adaptability across a range of monitoring applications.

Powered by an advanced deep learning algorithm, the camera supports intelligent features including perimeter protection and smart motion detection (SMD+), enabling precise identification of human and vehicle targets while reducing false alarms.

With starlight technology, the DHIPQ80/ALRW-M delivers exceptional low-light performance, ensuring vivid and detailed imagery even in near-dark conditions. Combined with 60m IR and warm light range, it guarantees full-scene visibility around the clock.

Key Features:

– H.265
– 8 Megapixel
– 2.7 mm–13.5 mm Motorised Lens
– Microphone built-in
– Classification of Human & Vehicle
– Warm Light Range: Up to 60m
– IR range: Up to 60m
– Perimeter Protection
– SMD+
– 120dB WDR
– Metal Housing
– IP67 Waterproof
– 12 VDC / POE

Specifications:
Model Number	DHIPQ80/ALRW-M
Image Sensor	1/2.7" CMOS
Effective Pixels	3840 (H) × 2160 (V)
ROM	128 MB
RAM	256 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.008 lux@F1.5 (Colour, 30 IRE) 0.0008 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	＞56 dB
Illumination Distance	Up to 60 m (196.85 ft) (IR); Up to 60 m (196.85 ft) (Warm light)
Illuminator On/Off Control	Auto/ Manual
Illuminator Number	4 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range	Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360°
Lens
Lens Type	Motorised vari-focal
Lens Mount	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	H: 114°–32°; V: 58°–17°; D: 138°–36°
Iris Type	Fixed
Close Focus Distance	1.5 m (4.92 ft)
DORI Distance	W Detect: 85.3m │Observe: 34.1m │Recognise: 17.1m │ Identify: 8.5m T Detect: 280m │Observe: 112m │Recognise: 56m │ Identify: 28m
Intelligence
IVS (Perimeter Protection)	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
SMD	SMD Plus
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Main stream: 3840 × 2160@(1–20 fps)/2688 ×1520@(1–25 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–25fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	2 Streams
Resolution	8M (3840×2160); 6M (3072×2048); 5M (3072×1728); 4M (2880×1620/2688×1520); 3M (2048×1536/2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352×288/352×240)
Bit Rate Control	VBR;CBR
Video Bit Rate	H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Day/Night	Auto(ICR) / Colour/ B/W
BLC	Yes
HLC	Yes
WDR	120 dB
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control	Auto/ Manual
Noise Reduction	3D NR
Motion Detection	Off / On (4 Areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Image Rotation	0°/ 90°/ 180°/ 270° (Support 90°/270° with 2688×1520 resolution and lower.)
Mirror	Yes
Privacy Masking	4 Areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network	RJ-45 (10/100Base-T)
SDK and API	Yes
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; auto registration
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone;
User/Host	20 (Total bandwidth: 48 M)
Storage	FTP; SFTP; Micro SD Card (support max. 256 G); Cloud; NAS
Browser	IE, Chrome, Firefox
Management Software	DMSS
Mobile Phone	iOS & Android
Cyber Security	Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Certification
Certifications	CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output	1 channel out: wet contact, 300 mA 12 VDC
General
Power Supply	12 VDC; PoE (802.3af)
Power Consumption	Basic: 2.6 W (12 VDC), 3.1 W (PoE); Max.: 10.2 W (12 VDC), 12.7 W (PoE) (H.265 + intelligence on+ WDR + warm light intensity)
Operating Conditions	-–40 °C to +55 °C (–40 °F to +131 °F) / ≤95% RH
Storage Conditions	-40ºC ~ +60ºC (-40ºF ~ +140ºF) / ≤95% RH
Ingress Protection	IP67
Casing	Metal
Dimensions	198.9 mm × 80.2 mm × 76.2 mm (7.83" × 3.16" × 3.00") (L × W × H)
Net Weight	0.54 kg (1.19 lb)
Gross Weight	0.68 kg (1.50 lb)

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.

Part Number	DHIPQ80/ALRW-M
Brand	SPRO
Colour	White
Housing Style	Bullet
Camera Resolution	8 Megapixel
Lens Type	Motorised
Lens Size	2.7 - 13.5 mm
ColourNight	2.0
Illumination Type	Dual
White Light Distance	up to 60m
IR Light Distance	up to 60m
Ingress Protection	IP67
Built-in Mic	Yes
Built In Speaker	No
SD Card Slot	256GB
Starlight	Yes
WDR	120dB
RCA Audio Jack	No
Alarm Tracking	No
Active Deterrence	No
SMD	Plus
Perimeter Protection	Yes
Tripwire	Yes
Intrusion	Yes
Face Detection	No
Face Recognition	No
ANPR	No
Meta Data	No
Flame Detection	No
People Counting	No
AcuPick	No
Heat map	No
