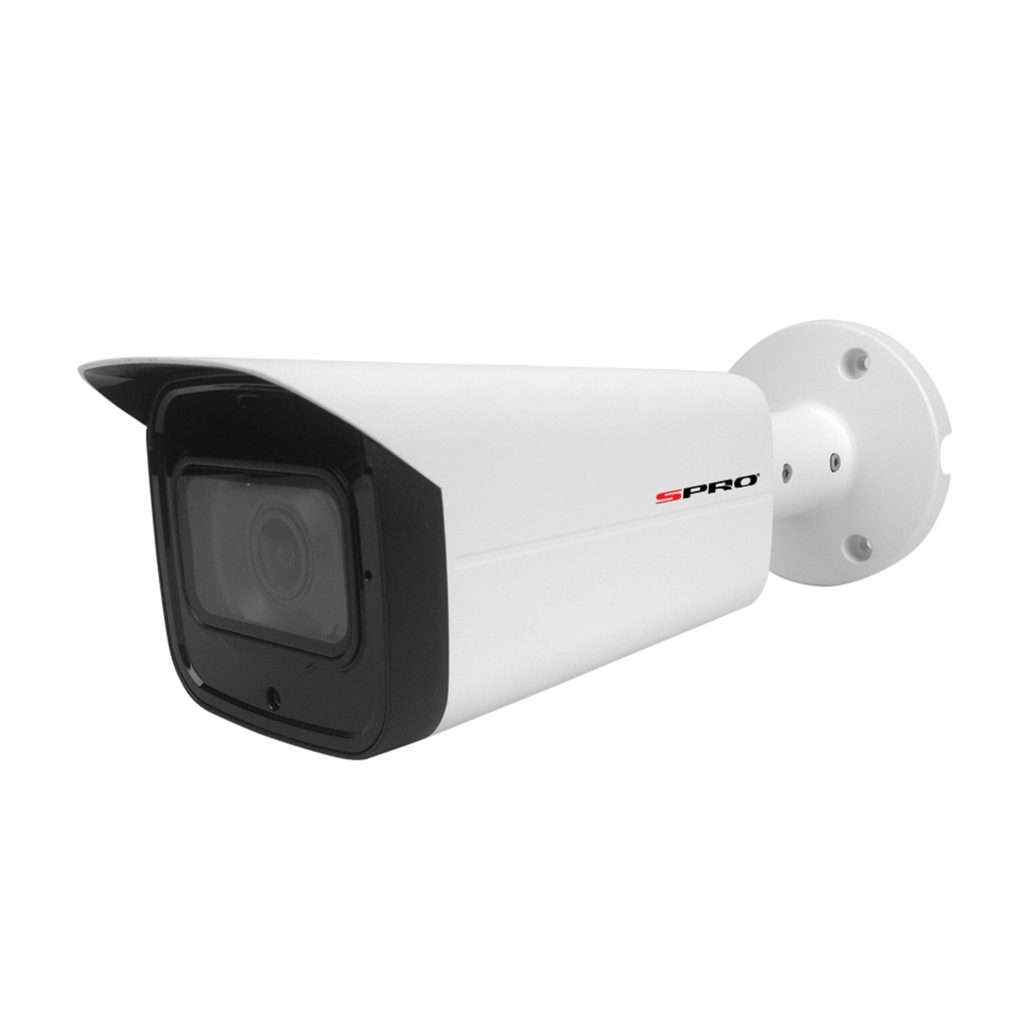

The SPRO 4MP Bullet Camera seamlessly combines a motorised lens with Starlight for superior clarity in low-light situations, supports storage up to 256GB and is housed in an IP67 waterproof casing.

Specifications:
Model Number	DHIPQ40/ARW/60-M-I
Image Sensor	1/2.9” CMOS
Effective Pixels	2688(H) x 1520(V)
ROM	128 MB
RAM	128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3s~ 1/100000s
Min. Illumination	0.008Lux@ F1.5 0.0008Lux@F1.5 (B/W, 30 IRE) 0 Lux (Illuminator on)
S/N Ratio	>56 dB
Max. IR LEDs Length	Distance up to 60m
IR On/Off Control	Auto/ Manual
IR LEDs	4 (IR LED)
Lens
Lens Type	Motorized vari-focal
Mount Type	φ14
Focal Length	2.7mm~ 13.5mm
Max. Aperture	F 1.5
Angle of View	Horizonal: 104°–29° × Vertical: 54°–16° × Diagonal: 125°–34°
Iris Type	Fixed
Close Focus Distance	0.8m
DORI Distance	Detect: 64-220m, Observe: 25.6-88m, Recognize: 12.8-44m, Identify: 6.4-22m
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan: 0° ~ 360° / Tilt: 0° ~ 90° / Rotation: 0° ~ 360°
Intelligence
IVS	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search	Work Together with Smart NVR to perform refine intelligent search, event extraction and mergin to event videos
Video
Compression	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec	Smart H265+; Smart H.264+
Video Frame Rate	Main stream: 2688 x 1520@ (1-20 fps)/2560 x 1440@ (1-25/30 fps) Sub stream: 704 x 576@(1-25 fps)/704 x 480@ (1-30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability	2 streams
Resolution	2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 32 kbps - 6144 kbps; H.265: 12kbps - 6144 kbps
Day / Night	Auto (ICR)/ Colour / B/W
BLC	Yes
HLC	Yes
WDR	120 dB
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Manual; Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON ( 4 areas, rectangular )
Region of Interest (RoI)	Yes ( 4 areas )
Smart Illumination	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 Areas
Audio
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event	No SD card; SD card full; SD card error; Network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception
Network
Network Port	RJ-45 (10/100 Base-T)
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability	ONVIF (Profile S / Profile T); CGI; P2P; Milestone
Storage	FTP; SFTP; Micro SD card (support max. 256 GB)
User/Host	6 ( Total bandwidth: 36M )
Browser	IE Chrome Firefox
Management Software	SPRO CSS
Mobile Client	iOS; Android
Cyber Security	Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Certification
Certifications	CE-LVD:EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B
Port
Audio Input	Built-in Mic
Power
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	-ZS: Basic: 2.4 W (12VDC); 3.1 W (PoE) Max. (H.265+intelligence on +WDR +IR on): 8.7 W (12 VDC); 10.1 W (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Storage Temperature	–40 °C to +60 °C (–40°F to +140°F)
Protection	IP67
Structure
Casing Material	Metal
Product Dimensions	238.5 mm x 90.7 mm x 90.7 mm
Net Weight	-ZS: 0.73 kg (1.6 lb);
Gross Weight	-ZS: 0.99kg (2.2lb);

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.

Part Number	DHIPQ40/ARW/60-M-I
Brand	SPRO
Colour	White
Housing Style	Bullet
Camera Resolution	4 Megapixel
Lens Type	Motorised
Lens Size	2.7 - 13.5 mm
ColourNight	No
Illumination Type	IR
White Light Distance	N/A
IR Light Distance	up to 60m
Ingress Protection	IP67
Built-in Mic	Yes
Built In Speaker	No
SD Card Slot	256GB
Starlight	Yes
WDR	120dB
RCA Audio Jack	No
Alarm Tracking	No
Active Deterrence	No
SMD	Plus
Perimeter Protection	Yes
Tripwire	Yes
Intrusion	Yes
Face Detection	No
Face Recognition	No
ANPR	No
Meta Data	No
Flame Detection	No
People Counting	No
AcuPick	No
Heat map	No
