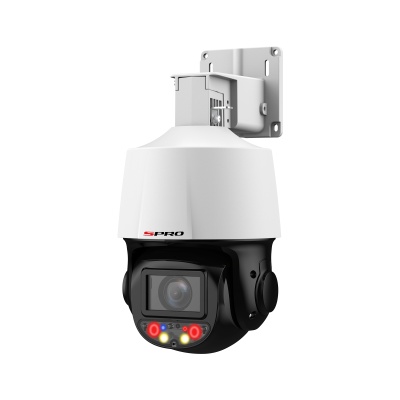

The SPRO Active Deterrence PTZ camera is designed to prevent crime before it happens. This camera features red and blue flashing lights, a built in speaker for speech and pre-recorded messages as well as ColourNight technology which allows the camera to see full colour images at night. This model also has advanced features like Missing and Abandoned Object Detection as well as Loitering and Crowd Gathering Detection.

Specifications:
Model Number	DHIPPTZ40/10XLR-D
Image Sensor	1/2.8" CMOS
Pixels	4 MP
Max. Resolution	2560 (H) × 1440 (V)
Scanning System	Progressive
Electronic Shutter Speed	1/1 ~ 1/30,000s
ROM	128 MB
RAM	512 MB
Min. Illumination	Colour: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on)
Illumination Distance	70 m (229.66 ft) (IR); 30 m (98.43 ft) (Warm light)
Illumination On/Off Control	Zoom Prio; Manual; Auto; Off
Illuminator Number	2 (IR) 2 (Warm light) 1 (Red light) 1 (Blue light)
Lens
Lens Type	4 mm–40 mm
Max Aperture	F1.6–F3.0
Field of View	H: 50.7°–11.0°; V: 27.6°–6.3°; D: 57.6°–12.5°
Optical Zoom	10x
Focus Control	Auto / Semi-Auto / Manual
Close Focus Distance	1m – 1.5 m (3.28 ft-4.92 ft)
Iris Control	Fixed
DORI Distance	Detect: 800 m (2624.67 ft) Observe: 316 m (1036.75 ft) Recognise: 160 m (524.93 ft) Identify: 80 m (262.47 ft)
PTZ
Pan/Tilt/Rotation	Pan: 0° to 355°; Tilt: –15° to +90°
Manual Control Speed	Pan: 0.1°/s–27.31°/s; Tilt: 0.1°/s–19.30°/s
Preset Speed	Pan: 24.32°/s; Tilt: 18.75°/s
Preset	300
Power-off Memory	Yes
Idle Motion	Preset
Intelligence
IVS (Perimeter Protection)	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking (people)
Face Detection	Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first
SMD	Yes
Auto Tracking	Yes
Active Deterrence
Light Warning	Red and blue light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low
Sound Warning	Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times
Video
Video Compression	H.264H;H.264B;Smart H.265+; H.264;H.265;MJPEG(Sub Stream); Smart H.264+
Streaming Capability	3 Streams
Resolution	4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p @(1–25/30 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps
Day/Night	Auto(ICR) / Color / B/W
BLC	Yes
WDR	120 dB
HLC	Yes
White Balance	H.264: 96 kbps–14848 kbps H.265: 38 kbps–8960 kbps
Gain Control	Auto(ICR) / Colour / B/W
Noise Reduction	2D NR; 3D NR
Motion Detection	Yes
Region of Interest	Yes
Image Stabilisation	Electronic (EIS)
Defog	Electronic
Digital Zoom	16x
Iage Rotation	180°
S/N Ratiom	≥ 55 dB
Audio
Compression	PCM; G.711a; G.711Mu; G.726; MPEG2_Layer2; G.722.1
Network
Network Port	RJ-45 (10/100 Base-T)
Network Protocol	HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; SMB; NFS
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P
Streaming Method	Unicast / Multicast
User/Host	20 (total bandwidth: 64 M)
Storage	FTP / SFTP; Micro SD card (512 GB); NAS
Browser	IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions
Management Software	DMSS
Mobile Client	IOS; Android
Certification
Certifications	CE: EN55032/EN55024/EN50130-4
Port
Audio Input	1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))
Audio Output	1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))
Alarm I/O	1/1
Alarm I/O	1/1
Alarm Linkage	Capture; recording; send email; preset; alarm digital input; audio; warning light
Alarm Event	Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply	12 VDC, 2 A ± 10%; PoE+ (802.3at)
Power Consumption	Basic: 3 W Max.: 12 W (Warning light + illuminator + PTZ + speaker + heating glass) (12 VDC) Basic: 4 W Max.: 14 W (Warning light + illuminator + PTZ + speaker + heating glass) (PoE)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Protection	IP66; TVS 2000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions	142.6 mm × 151.8 mm × 236.2 mm (5.61" × 5.98" ×9.30 ") (L × W × H)
Net Weight	1.58 kg (3.48 lb)
Gross Weight	2 kg (4.41 lb)

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.

Part Number	DHIPPTZ40/10XLR-D
Brand	SPRO
Colour	White
Housing Style	PTZ
Camera Resolution	4 Megapixel
Lens Type	Motorised
Lens Size	4 - 40 mm
ColourNight	2.0
Illumination Type	Dual
White Light Distance	up to 30m
IR Light Distance	up to 70m
Ingress Protection	IP66
Built-in Mic	Yes
Built In Speaker	Yes
SD Card Slot	512GB
Starlight	No
WDR	120dB
RCA Audio Jack	No
Alarm Tracking	Human
Active Deterrence	Full
SMD	Plus
Perimeter Protection	Yes
Tripwire	Yes
Intrusion	Yes
Face Detection	Yes
Face Recognition	No
ANPR	No
Meta Data	No
Flame Detection	No
People Counting	No
AcuPick	No
Heat map	No
