Only Compatible with the SPRO A7 and A8 NVR Range

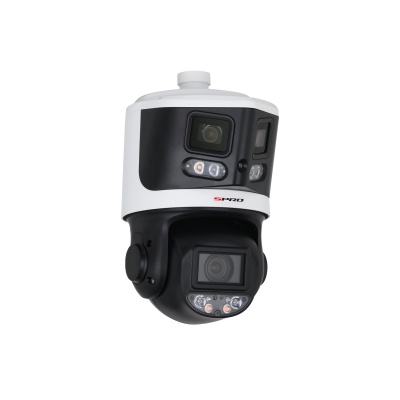

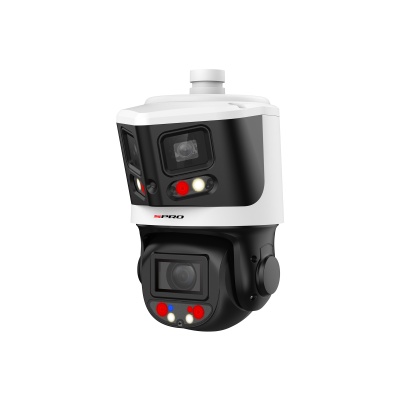

This multi-sensor PTZ camera is designed for wide-area monitoring with targeted zoom capability in a single unit. It combines two panoramic 4MP lenses and one motorised 4MP zoom lens to provide both broad situational awareness and detailed inspection.

Key Features:
• Duo Panoramic View: Two 4MP fixed lenses deliver a perfect spliced panoramic view at 25fps, suitable for covering large open spaces with minimal blind spots.
• Zoom Lens: A separate 4MP motorised lens offers 10x optical zoom (4–40mm), enabling clear close-up views.
• PTZ Range: 345° horizontal rotation with variable speed control and vertical tilt up to 50°/s. Supports 300 position presets.
• AI Functions: Includes tripwire and intrusion alerts, face detection, human/vehicle classification, and Smart Motion Detection 4.0 for reduced false alerts.
• Active Deterrence 2.0: Integrated red and blue warning lights, speaker, and alarm siren trigger when threats are detected.
• Night Surveillance: Starlight sensor provides full-colour imaging in low light. Infrared range: 30m (panoramic), 70m (zoom); white light range: 30m.
• Audio Support: Built-in microphone and speaker for two-way audio and sound recording.
• Tracking: Alarm tracking of human targets after detection.
• Durability: IP66 rated for outdoor use in varied weather.
• Power Options: Compatible with DC12V/3A and PoE+ setups.

Applications:
Ideal for external sites where both overview and zoom-in detail are required — such as car parks, industrial yards, logistics hubs, or retail exteriors.

Specifications:
Model Number	DHIPPTZ40/10XLR-D
Image Sensor	Panoramic: 1/2.8" CMOS; Detail: 1/2.8" CMOS
Pixels	Panoramic: 4+4 MP; Detail: 4 MP
Max. Resolution	Panoramic: 5376(H) × 1520(V); Detail: 2560(H) × 1440(V)
Scanning System	Progressive
Electronic Shutter Speed	Panoramic: 1 s–1/100,000 s; Detail: 1 s–1/30,000 s
ROM	Panoramic: 4GB; Detail: 4GB
RAM	Panoramic: 2GB; Detail: 1GB
Min. Illumination	Panoramic: 0.005 lux@F1.6 (Colour, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) Detail: 1 s–1/30,000 s 0.005 lux@F1.6 (Colour, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on)
Illumination Distance	Panoramic: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) Detail: 70 m (229.66 ft); 30 m (98.43 ft) (white light)
Illumination On/Off Control	Panoramic: Manual; Auto; Off Detail: Zoom Prio; Manual; Auto; Off
Illuminator Number	Panoramic: 2 (IR light); 2 (white light); Detail: 2 (Dual light fusion); 2 (IR light)
Lens
Focal Length	Panoramic: 2.8 mm; Detail: 4 mm–40 mm
Max Aperture	Panoramic: F1.6; Detail: F1.6-F3.6
Field of View	Panoramic: H: 180°; V: 47°; Detail: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8°
Optical Zoom	Panoramic: NA; Detail: 10×
Focus Control	Auto; manual; semi-auto
Close Focus Distance	Panoramic: 0.6 m (1.97 ft); Detail: 0.1 m–0.5 m (0.33 ft–1.64 ft)
Iris Control	Panoramic: N/A ; Detail: N/A
DORI Distance	Detect: 500 m (1640.42 ft) Observe: 197.5 m (647.97 ft) Recognise: 100 m (328.08 ft) Identify: 50 m (164.04 ft)
PTZ
Pan/Tilt/Rotation	Pan: 0° to 345°; Tilt: -10° to +90°
Manual Control Speed	Panoramic: NA; Detail: H: 0.1°–80°/s; V: 0.1°–50°/s
Preset Speed	H: 80°/s; V: 50°/s
Preset	300
Power-off Memory	Yes
Idle Motion	Preset
Intelligence
IVS (Perimeter Protection)	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people)
Face Detection	Detail: Supports face detection, optimisation, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customise the size to be a one-inch photo. The supported methods for capturing snapshots are realtime capturing, quality first, and selecting a preferred image among a group of snapshots.
SMD	SMD 4.0
Alarm Tracking	Yes
Active Deterrence
Light Warning	Red and blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
Sound Warning	Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10
Video
Video Compression	H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1)
Streaming Capability	3 Streams
Resolution	Panoramic: 5376 × 1520; Detail: 2560 × 1440; 3M (2304 × 1296); 1080p (1920 × 1080); 1280 × 960 (1.3M); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Panoramic: Main stream: 5376 × 1520 @(1–25 fps) Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25fps) Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25 fps); Detail: Main stream: 4M/3M/1080p/1.3M/720p @(1–25fps) Sub stream 1: D1/VGA/CIF@ (1–25 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	Panoramic: H264: 128 kbps–16,384 kbpsH265: 51 kbps–13,312 kbps; Detail: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps
Day/Night	Panoramic: Auto; Colour; B/W; Detail: Auto; Colour; B/W; Electronic
BLC	Yes
WDR	Panoramic: DWDR; Detail: 120 dB
HLC	Yes
White Balance	Panoramic: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control	Panoramic: Auto; manual; gain prio Detail: Auto; manual; gain prio
Noise Reduction	Panoramic: 2D NR; 3D NR Detail: 2D NR; 3D NR
Motion Detection	Yes
Region of Interest	Yes
Image Stabilisation	Panoramic: N/A Detail: Electronic Image Stabilisation (EIS)
Defog	Panoramic: Electronic Detail: Electronic
Digital Zoom	Panoramic: N/A Detail: 16x
Image Rotation	Panoramic: N/A Detail: 180°
S/N Ratio	Panoramic: ≥55dB Detail: ≥55dB
Audio
Audio Compression	Panoramic: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; Detail: N/A
Network
Network Port	RJ-45 (100 Base-T)
Network Protocol	FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P
Streaming Method	Unicast / Multicast
User/Host	20 (total bandwidth: 64 M)
Storage	Micro SD card (512 GB); FTP/SFTP; NAS
Browser	web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions
Management Software	DMSS
Mobile Client	IOS; Android
Certification
Certifications	CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/ EN62368-1/IEC62471
Port
Audio Input	1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))
Audio Output	1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))
Alarm Input	1 (on-off value input: 0–5 VDC)
Alarm Output	1 channel
Alarm Linkage	Capture; recording; send email; preset; alarm digital output; audio; warning light
Alarm Event	Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Power
Power Supply	12 VDC, 3 A ± 10%PoE+(802.3at)
Power Consumption	Basic: 12 W; Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	≤95%
Protection	TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection
Structure
Product Dimensions	140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L × W × H)
Net Weight	2.17 kg (4.78 lb)
Gross Weight	3.1 kg (6.83 lb)

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.

Part Number	DHIPPTZ40/10XLR-DUO
Brand	SPRO
Colour	White
Housing Style	PTZ
Camera Resolution	4 Megapixel
Lens Type	Motorised
Lens Size	2.8 mm / 4 - 40 mm
ColourNight	2.0
Illumination Type	Dual
White Light Distance	up to 30m
IR Light Distance	up to 70m
Ingress Protection	IP66
Built-in Mic	Yes
Built In Speaker	Yes
SD Card Slot	512GB
Starlight	Yes
WDR	Digital
RCA Audio Jack	No
Alarm Tracking	Human
Active Deterrence	Full
SMD	4.0
Perimeter Protection	Yes
Tripwire	Yes
Intrusion	Yes
Face Detection	Yes
Face Recognition	No
ANPR	No
Meta Data	No
Flame Detection	No
People Counting	No
AcuPick	No
Heat map	No
