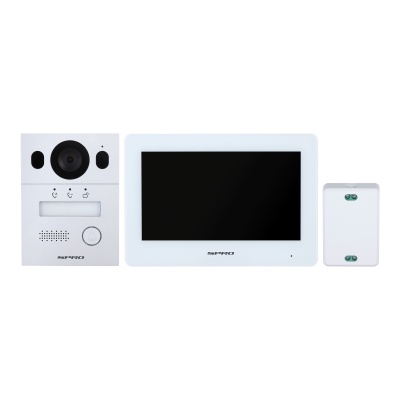

The SPRO DHVDPKIT04-S is a robust, high-performance 2-wire intercom kit designed to deliver advanced entry management and communication for residential complexes, commercial buildings, and secure facilities. Combining a high-resolution 2MP CMOS HDR camera with intuitive touch-screen operation and seamless remote access, this kit ensures security and convenience in a compact, weather-resistant design.
Key Features:
• 2MP HDR Camera with DWDR: Capture images in varying lighting conditions with the 2-megapixel CMOS HDR sensor and Digital Wide Dynamic Range (DWDR) technology — ideal for both day and night use.
• 7” TFT Touch Screen Monitor: A sleek, full-colour interface offers easy navigation and real-time video display, enabling users to see, speak to, and grant access to visitors with a simple tap.
• 2-Wire Installation: Simplified wiring for easier upgrades and retrofits without the need for extensive cabling – perfect for new builds and refurbishments alike.
• Two-Way Audio with Auto IR Illumination: Crystal-clear voice communication and automatic infrared lighting ensure effective interaction and visibility, even in complete darkness.
• Remote Unlock & Lock Control: Grant access securely from the indoor monitor or remotely via mobile device (with supported integration), giving users complete control wherever they are.
• Anti-Tamper Alarm: Built-in security features alert users to tampering attempts, enhancing the integrity of your premises.
• Durable, Surface-Mount Design: Built to withstand harsh environments with IP65 weatherproofing and IK07 vandal resistance, ensuring long-term reliability and protection.
• Nameplate Functionality: Clearly identify units or occupants – ideal for multi-dwelling applications or shared access points.
Ideal for:
• Apartment complexes
• Office buildings
• Gated communities
• Small business premises
The SPRO DHVDPKIT04-S offers a perfect balance of security, user-friendliness, and installation flexibility. Whether for retrofitting existing systems or integrating into new builds, this 2-wire intercom kit is engineered for professional-grade performance with minimal installation complexity.
| Specifications: | |
|---|---|
| Model Number | DHVDPKIT04-S |
| Intercom | |
| Main Processor | Embedded Processor |
| Button Type | Mechanical |
| Basic | |
| Camera | 1/2.8" 2 MP CMOS HDR Camera |
| Field of View | H: 110°; V: 60° |
| WDR | DWDR |
| Noise Reduction | 3D NR |
| Video Resolution | 960 (H) × 576 (V) |
| Video Frame Rate | 25fps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR) / Colour / B/W; Colour/ B/W |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio (half-duplex) |
| Function | |
| Unlock Mode | Remote unlock |
| Leave Videos | Yes (SD card is needed in the monitor) |
| Performance | |
| Casing Material | Aluminium Alloy |
| Port | |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power Output | 1 x 12 VDC output, 200 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Colour | Silver |
| Power Supply | 2-wired controller |
| Installation | Flush mount; Surface mount |
| Certifications | CE; FCC |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
| Protection | IP65; IK07 |
| Operating Temperature | –40 °C to +60°C (–40 °F to +140 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | 0 m–3000 m (0 ft – 9842.52 ft) |
| Power Consumption | ≤ 1.5 W (standby), ≤ 10 W(working) |
| Gross Weight | 0.502 kg (1.11 lb) |
| Storage Temperature | –40 °C to +70°C (–40 °F to +158 °F) |
| Storage Humidity | 95% (RH), non-condensing |
| Monitor | |
|---|---|
| System | |
| Main Processor | Embedded Processor |
| Operating System | Mechanical |
| Network Protocol | IPv4; UDP; DNS; TCP |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 7" TFT |
| Screen Resolution | 1024 (H) x 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio VTO (half-duplex); Two-way audio with app (full-duplex) |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 kHz; 16 bit |
| Function | |
| Leave Videos | Yes (SD card needed) |
| DND Mode | Do not disturb period can be set |
| Number of Extensions | 5 |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Max Transmission Power | ≤20 dBm@2,400–2,483.5 MHz |
| Storage | Micro SD card (up to 64 GB) |
| Port | |
| RS-485 | 1 |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Power Output | 1 (12V, 200mA) |
| Door Bell | Yes (use the alarm input port) |
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Colour | White |
| Power Supply | 2-wire controller |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Product Dimensions | 130 mm × 189 mm × 23.9 mm (5.12" × 7.44" × 0.94") |
| Operating Temperature | –10 °C to +55°C (14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH) |
| Operating Altitude | 0 m–3000 m (0 ft – 4265.09 ft) |
| Power Consumption | ≤ 2.5 W (standby), ≤ 10 W(working) |
| Gross Weight | 0.633 kg (1.40 lb) |
| Storage Temperature | –40 °C to +70°C (–40 °F to +158 °F) |
| Storage Humidity | 95% (RH), non-condensing |
| 2-Wire Controller | |
|---|---|
| Performance | |
| Casing Material | PC + ABS |
| General | |
| Appearance Colour | White |
| Power Supply | 48 VDC |
| Certifications | CE; FCC |
| Accessory | Included: Line termination terminal |
| Product Dimensions | 65.2 mm × 46.2 mm × 23.2 mm (2.57" × 1.82" × 0.91") |
| Operating Temperature | –10 °C to +55°C (14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH) |
| Operating Altitude | 0 m–3000 m (0 ft – 4265.09 ft) |
| Power Consumption | 3.5 W |
| Gross Weight | 0.13 kg (0.29 lb) |
