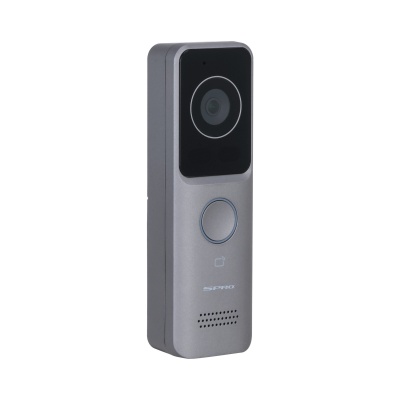

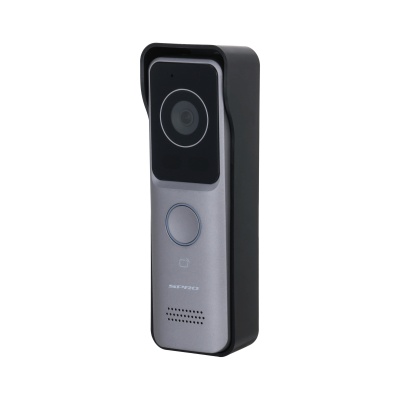

This ultra-slim standalone outdoor doorbell is a popular solution for most applications. Equipped with a 2-MP HD CMOS camera, it supports two-way video calls and can be used in conjunction with indoor monitors or as a standalone device controlled via the dedicated app on your smartphones. This doorbell comes with a surface mount bracket.
Key Features
• PC and ABS material make it ideal for indoor and outdoor use.
• Offers two-way video call with indoor monitors.
• Video and voice messages from visitors can be checked on the indoor monitor.
• Video call and unlocking through app.
• IR illumination and auto WDR
• IP65 rated.
• H.264 and H.265.
• Unlock with IC Card
• PoE powered
• Viewing and recording on SPRO DVR/NVR
| Specifications: | |
|---|---|
| Model Number | VI-STN04 |
| Main Processor | Embedded Processor |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF |
| Basic | |
| Camera | 1/2.8" CMOS 2-MP HD camera |
| Field of View | H: 110�; V: 62�; D: 133� |
| WDR | 120dB |
| Noise Reduction | 3D NR; 2D NR |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720p, WVGA, D1 and CIF; Sub stream: 1080p WVGA, D1 and CIF |
| Video Frame Rate | PAL:25 fps NTSC:30 fps |
| Video Bit Rate | 768 kbps-8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto (ICR)/Color/B/W; Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction; Echo suppression; Digital noise reduction |
| Audio Bit Rate | 16kHz, 16 bit |
| Function | |
| Communication Mode | Full digital |
| Unlock Mode | Card; app; indoor monitor |
| Card Type | IC card |
| Auto Snapshot | Yes (SD card is inserted in the indoor monitor or door station) |
| Leave Videos | Yes (SD card inserted in VTH/VTO is needed) |
| Web Configuration | Yes |
| Wi-Fi | Yes |
| Wireless Standard | IEEE 802.11b; IEEE 802.11g; IEEE 802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Storage | Micro SD card (max. 256 GB) |
| Performance | |
| Card Reading Distance | 0cm-3cm (0"�1.18") |
| Issue Card Locally | Yes |
| Casing | PC+ABS |
| Capacity | |
| Card Capacity | 3000 |
| Port | |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | 1xRJ-45 10/100Mbps Ethernet port |
| Alarm | |
| Tamper Alarm | Yes |
| General | |
| Appearance Colour | Light Grey |
| Power Supply | 12-33 VDC, 1 A; Standard PoE |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE, FCC |
| Accessory | Included: Alarm power ribbon cable, rain cover |
| Product Dimensions | 160 mm � 50 mm � 30 mm (6.30" � 1.97" � 1.18") |
| Protection | IP65 |
| Operating Temperature | �40 �C to +60 �C (�40 �F to +140 �F) |
| Operating Humidity | 10%�90% (RH), non-condensing |
| OperatingAltitude | 0 m�3,000 m (0 ft�9,842.51 ft) |
| Power Consumption | ≤ 3.5 W (standby), ≤ 6 W (working) |
| Gross Weight | 0.4kg (0.88lb) |
| Net Weight | 0.18kg (0.40lb) |
Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.
For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.
| Part Number | VI-STN04 |
| Brand | SPRO |
