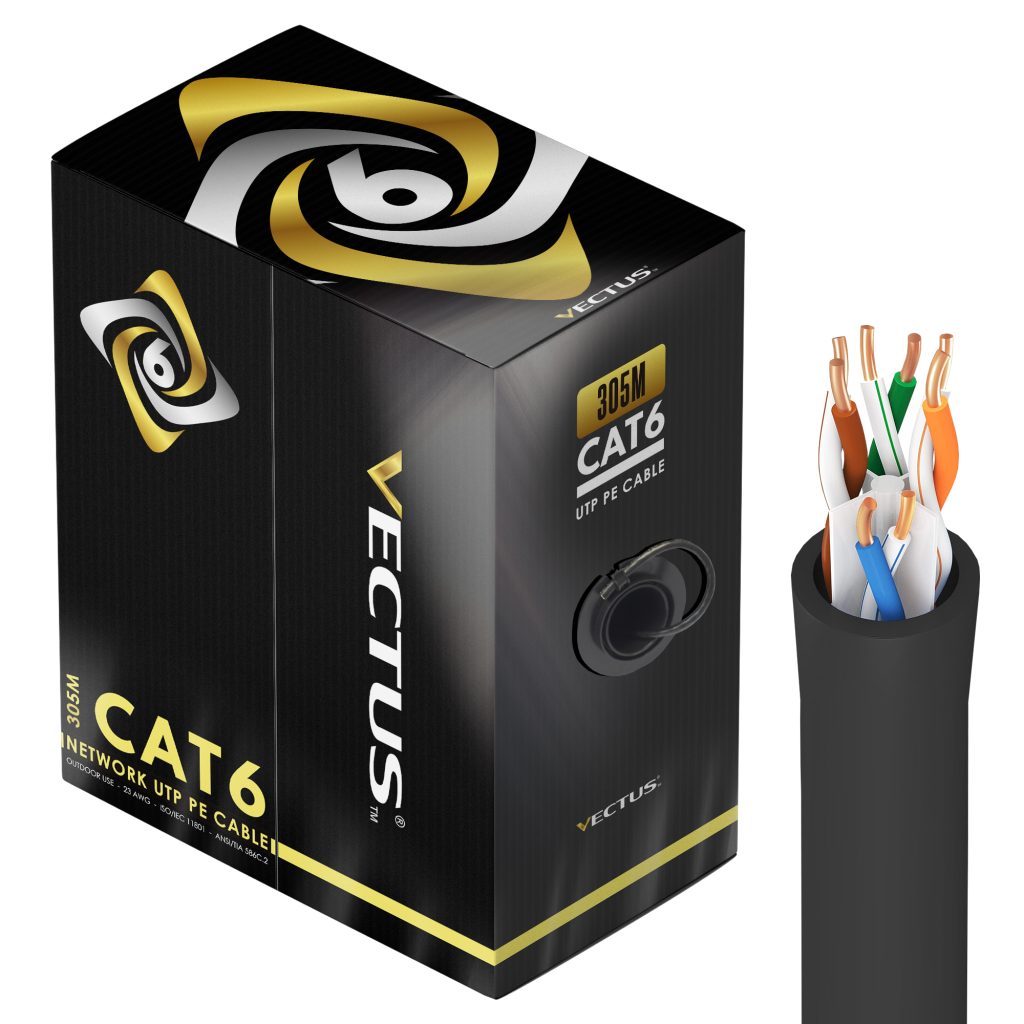

The VECTUS CAT6 Outdoor Cable is purpose-built for outdoor settings, featuring a sturdy black PE sheath and a solid copper core within a 305-meter easy pull box.
It is metre-marked for convenience, supports 23 AWG, and adheres to ANSI/TIA, EN, and ISO/IEC standards.
Supports a higher bandwidth up to 250 MHz, enhancing network performance.
The cable is also rated FCA for fire response, ensuring safety and compliance for all exterior network installations.
Key Features
• External grade
• 305m in easy pull box
• Metre marked
• Solid core copper
• PE outer sheath (black)
• 23 AWG
• ANSI/TIA 568-c.2
• EN50575: 2014+A1: 2016
• ISO/IEC 11801
• Fca
| Specifications: | |
|---|---|
| Model Number | CAT6PE-305-B |
| Category | Solid-Bare Copper |
| Reference Standard | ISO/IEC11801, TIA-568-C.2 |
| American Wire Gauge | 23AWG |
| Insulation | |
| Material | HDPE |
| Diameter | 0.96±0.08mm |
| Sheath | |
| Thickness | 0.55 ± 0.05 mm |
| External O.D. | 6.1±0.5 mm |
| Surface | Clean, Frap, Satiation |
| Material | LDPE(complies RoHS) |
| Colour | Black |
| Surface Printing | |
| Letter height | 3.0 ± 0.3 mm |
| Colour | White |
| Print error & Space | ≤±0.5%，1m |
| Core Colour | |
| Colour | 8-core, Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown |
| Packaging | |
| Length | 305m (1000 ft) ± 1.5 m (4.92 ft) |
| Packaging Dimensions | 360mm × 360mm × 205mm (14.17" × 14.17" ×8.07") (L × W × H) |
| Packaging Method | 305 m (1000.66 ft) a carton one protection carton with 2 cartons inside |
| Net Weight | 7kg±0.6kg (22 lb±1.32lb) |
| Gross Weight | 7.5kg±0.6kg (24.20 lb±1.32lb) |
| Rip Cord | |
| Rip Cord | Yes |
| Drain Wire | No |
| Sheath Physical Properties | |
| Before Aging Tensile Strength (Mpa) | ≥10.0 |
| Before Aging Elongation (%) | ≥350 |
| Aging Period (°C x hrs) | 100°C x 24h x 10d |
| After Aging Elongation (%) | ≥300 |
| Cold bend (-20±2°Cx4h) | 8 x Cable O.D., No Visible cracks |
| Electrical Characteristics (20°C) | |
| 1.0-250.0 Mhz Impedance | 100±15 |
| 1.0-250.0 Mhz Delay Scew | ≤45 |
| DC Resistance (Ω/100m) max | 9.38 |
| DC Conductor Resistance Unbalance (%) max | 5.0 |
| Certifications | |
| Certifications | Category 6,4-pair,23 AWG,U/UTP, PE; ISO/IEC 11801-1:2017 EN 50173-1:2018 / EN 50173-2:2018; ANSI/TIA 568-D:2015 EN 50575:2014 + A1:2016; RoHS 2.0: (2011/65/EU & 2015/863): 2023 |
