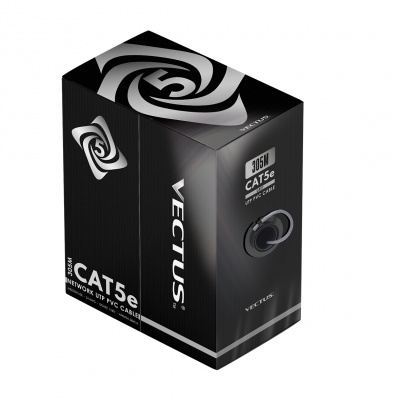

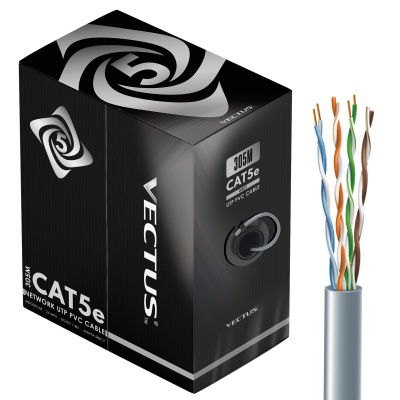

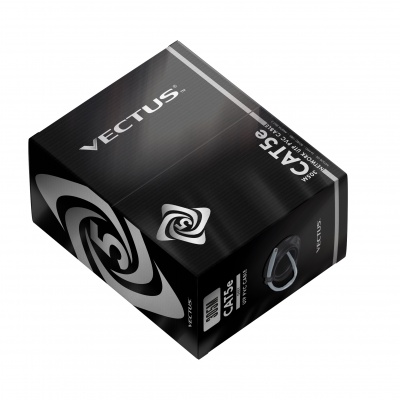

The VECTUS CAT5e PVC Cable is the epitome of reliable and robust cabling for indoor applications. Its solid copper core and sturdy PVC sheath guarantee consistent performance and durability.
With a 24AWG and metre-marked grey outer sheath for easy length measurement, it’s designed to facilitate a straightforward installation process.
Suitable for Gigabit Ethernet connections, providing reliable network performance.
The cable’s dimensions and minimum average thickness ensure it fits comfortably within various conduits and spaces. At the same time, its ECA fire rating provides an additional layer of safety.
Key Features
• CAT5 solid copper core cable
• PVC
• 24AWG
• Metre marked
• Outer sheath colour : grey
• Reaction to fire : Eca
| Specifications: | |
|---|---|
| Model Number | CAT5PVC-305-G |
| Material | Bare Copper |
| American Wire Gauge | 24AWG |
| Insulation | |
| Material | HDPE |
| Min. Average Thickness | 0.50±0.05 mm |
| Diameter | 0.86±0.05mm |
| Colour | 8-core, Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown |
| Rip Cord | |
| Rip Cord | Yes |
| Drain Wire | No |
| Sheath | |
| Thickness | 0.50±0.05 mm |
| External O.D | 4.9±0.4 mm |
| Material | PVC(complies RoHS) |
| Colour | Grey |
| Reaction to Fire | Eca |
| Sheath Physical Properties | |
| Before Aging Tensile Strength (Mpa) Elongation(%) | ≥13.5 ≥150 |
| Aging Period(°C×hrs) | 100°C×24h×7d |
| Cold bend(-20±2°C×4h) 8×Cable O.D. | No visible cracks |
| Electrical Characteristics (20°C) | |
| 1.0-100.0MHz Impedance(Ω) | 100±15 |
| 1.0-100.0MHz Delay Skew (ns/100m) | ≤45 |
| DC ResistanceΩ/100m) max | 11.0 |
| DC Conductor Resistance Unbalance(%) max | 5.0 |
| Packaging | |
| Length | 305m (1000.66 ft) ± 1.5 m (4.92 ft) |
| Packaging Dimensions | 350mm × 350mm × 220mm (L × W × H) |
| Net Weight | 8.4kg±0.6kg |
| Gross Weight | 9.46kg±0.6kg |
| Executive Standard | |
| Executive Standard | ISO/IEC11801, TIA-568-C.2 |
