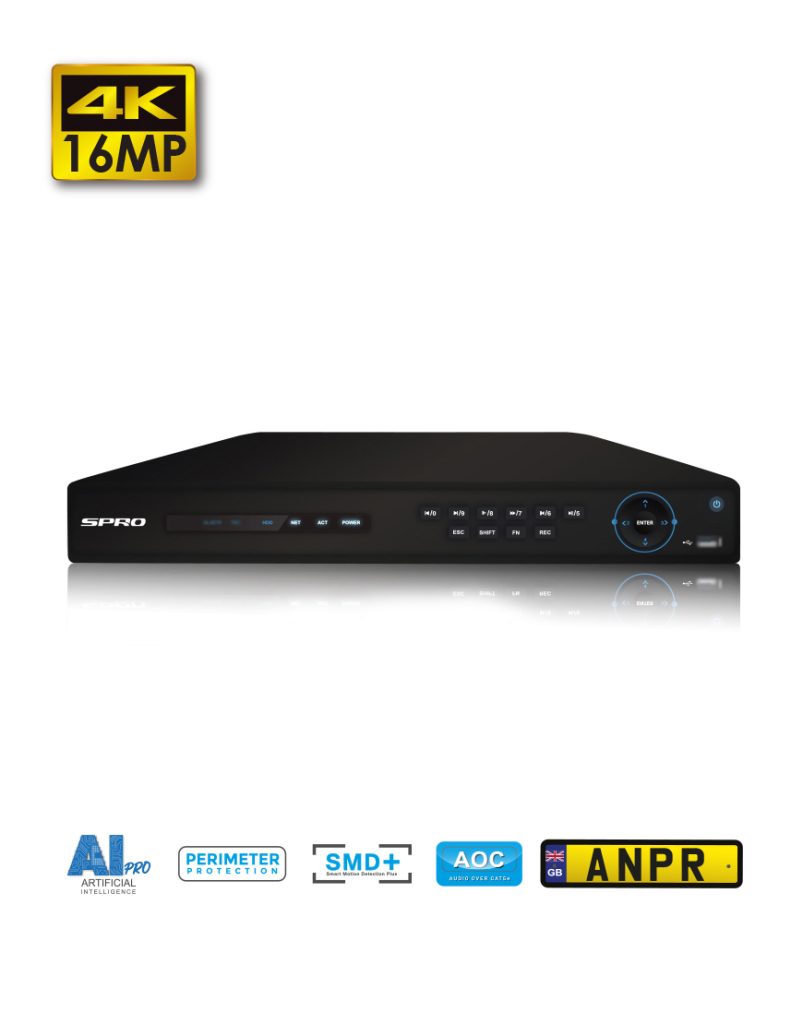

The SPRO A7 32 Channel 16MP IP NVR (DHIPNVR32-A7) is a powerful network video recorder designed to accommodate up to 32 IP cameras. With a 16MP resolution capacity, it offers high-quality video recording and playback, ensuring you capture detailed footage. This NVR model is equipped with advanced features to bolster your surveillance system’s capabilities and security. Its robust performance and reliability make it an ideal choice for comprehensive video surveillance solutions.
Key Features
• H.265 codec recording
• Up to 16 megapixel live viewing & recording
• 16 x POE ports built-in
• Up to 256Mbps incoming bandwidth
• AI PRO technology (support AI by NVR)
• Face detection & recognition
• Human & vehicle classification
• HDMI (4K) & VGA output
• ANPR (AI by camera)
| Specifications: | |
|---|---|
| Model Number | DHIPNVR32-A7 |
| Main Processor | Industrial-grade processor |
| Operating System | Embedded LINUX |
| Operating Interface | Web; Local GUI |
| AI | |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; stereo analysis; people counting; ANPR; heat map |
| Perimeter Protection | |
| Perimeter Performance AI (Recorder) | 2 channels, 10 IVS rules for each channel |
| Perimeter Performance AI (Camera) | 8 channels |
| Face Detection | |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance by Recorder | 1 channel (up to 12 face images/s each channel) |
| Face Detection Performance by Camera | 8 channels |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image |
| Face Recognition Performance of AI by Recorder | 8-channel FD (by camera) + FR (by recorder),image stream: 2 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera | 8 channels |
| ANPR | |
| ANPR by camera | 4 channels |
| SMD+ | |
| SMD + by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
| SMD + by Camera | 8 channels |
| Audio and Video | |
| Access Channel | 32 channels |
| Network Bandwidth | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Decoding Capability | AI disabled: 2-channel 16 MP@25 fps; 2-channel 12 MP@25 fps; 4-channel 8 MP@25 fps; 6-channel 5 MP@25 fps; 8-channel 4 MP@25 fps; 16-channel 1080p@25 fps AI enabled: 1-channel 16 MP@25 fps; 2-channel 12 MP@25 fps; 3-channel 8 MP@25 fps; 4-channel 5 MP@25 fps; 6-channel 4 MP@25 fps; 12-channel 1080p@25 fps |
| Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable |
| Multi-screen Display | 1st Screen: 1/4/8/9/16 - 2nd Screen: 1/4/8/9/16 |
| Third-party Cameras access | ONVIF |
| Compression Standard | |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome; IE9 and later; Firefox |
| Recording Playback | |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm |
| Backup Method | USB device and network |
| Playback Mode | Instant Playback, general playback, event playback, tag playback, smart playback |
| Storage | |
| Disk Group | Yes |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
| Anomaly Alarm | Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
| Port | |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| HDD Interface | 2 SATA ports, up to 16TB. The maximum HDD capacity varies with environment temperature. |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 2 ( 1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1(10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 16 ports, 10/100 Mbps, IEEE 802.3 af/at |
| General | |
| Power Supply | 100–240 VAC, 47-63 Hz |
| Power Consumption | Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of a single port is 25.5W |
| Net Weight | 2.57 kg (5.67 lb) |
| Gross Weight | 3.8 kg (8.38 lb) |
| Product Dimensions | 375.0 mm × 329.3 mm x 53.0 mm (14.76" × 12.96" × 2.09") |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.
For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.
| Part Number | DHIPNVR32-A7-0TB |
| Brand | SPRO |
| SMD | Plus |
| Perimeter Protection | Yes |
| Tripwire | Yes |
| Intrusion | Yes |
| Face Detection | Yes |
| Face Recognition | Yes |
| ANPR | Yes |
| Flame Detection | No |
| People Counting | Yes |
| AcuPick | No |
| Recorder Resolution | 16 Megapixel |
| Channels | 32 |
| Number of POE Ports | 16 |
| Number of LAN Ports | 1 |
| Hard Drive Bays | 2 |
| Alarm Input / Output | 4 In / 2 Out |
