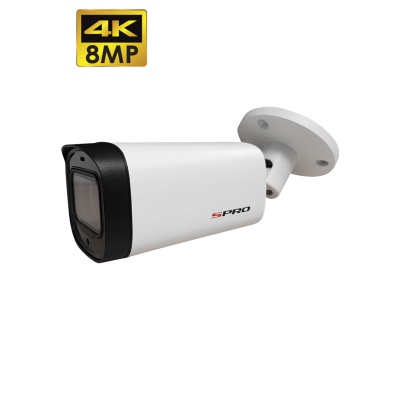

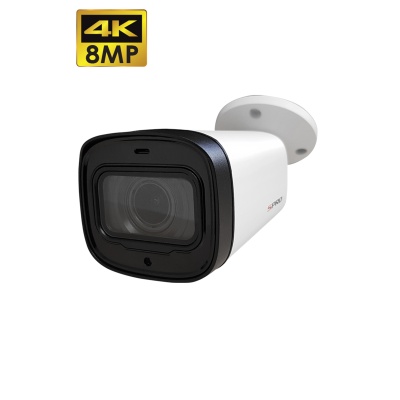

The SPRO 8MP HDCVI Bullet Camera showcases a motorised lens, capturing impeccable details with up to 60m IR reach. Designed for resilience, it’s encased in an IP67 waterproof shell, ensuring it stands up to challenging environments.
| Specifications: | |
|---|---|
| Model Number | DHQ80/ARW/60M |
| Image Sensor | 1/2.7 inch CMOS |
| Effective Pixels | 3840(H)×2160(V), 8MP |
| Electronic Shutter Speed | 1/3s-1/100000s |
| Min. Illumination | 0.03Lux/F1.7, 30IRE, 0Lux IR on |
| Max. IR LEDs Length | Distance up to 60m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 4 |
| Lens | |
| Lens Type | Motorized lens |
| Mount Type | φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max Aperture | F1.7 |
| Angle of View | H.: 105°–33° × V.: 56°–18°× D.: 126°–38° |
| Iris Type | Fixed iris |
| Close Focus Distance | 0.8m |
| DORI Distance | Detect: 90-264 m Observe: 36-106 m Recognize: 18-53 m Identify: 9-26 m |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation | Pan:0˚~360˚ / Tilt: 0° ~ 90° / Rotation: 0° ~ 360° |
| Video | |
| Resolution | 4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960× 576/ 960 × 480) |
| Video Frame Rate | CVI: 4K@15fps; 5M@20fps; 4M@25fps, CVBS: PAL/NTSC |
| Day/Night | Auto switch by ICR |
| BLC Mode | BLC / HLC / DWDR |
| WDR | 120dB |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D & 3D NR |
| Smart IR | Yes |
| Electronic Defog | Yes |
| Digital Zoom | 4X |
| Mirror | Off/On |
| Privacy Masking | Off/On (8 Area, Rectangle) |
| Port | |
| Audio Port | N/A |
| Video Port | Video output: HDCVI |
| General | |
| Power Supply | DC12V±15% |
| Power Consumption | Max 11W (12V DC, IR on) |
| Operating Conditions | -30°C ~ +60°C / Less than 90% RH |
| Strorage Conditions | -30°C ~ +60°C / Less than 90% RH |
| Protection Grade | IP67 |
| Casing | Aluminium |
| Dimensions | 244mm × 90mm × 90mm (9.61"× 3.5"× 23.5") |
| Net Weight | 0.42kg (0.93lb) |
| Gross Weight | 0.53kg (1.17lb) |
Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.
For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.
| Part Number | DHQ80/ARW/60M |
| Brand | SPRO |
| Colour | White |
| Housing Style | Bullet |
| Camera Resolution | 8 Megapixel |
| Lens Type | Motorised |
| Lens Size | 2.7 - 12 mm |
| ColourNight | No |
| Illumination Type | IR |
| IR Light Distance | up to 60m |
| Ingress Protection | IP67 |
| Video Protocol | CVI |
| Built-in Mic | No |
| Starlight | No |
| WDR | 120dB |
| POC | No |
