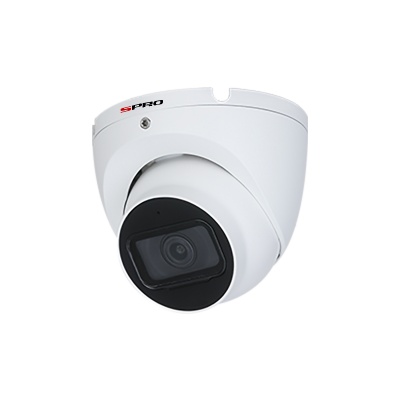

Upgrade security with the SPRO 8MP Fixed Lens Turret Camera.
This remarkable camera boasts an astounding 4K maximum resolution, ensuring that every detail is captured with breathtaking clarity.
Supporting multiple video formats, including CVI, CVBS, AHD and TVI makes integration into existing systems seamless.
With a built-in microphone that captures crystal-clear audio, it also has exceptional night vision and a maximum IR distance of 30 metres.
Key Features
- Max. 4K resolution
- CVI/CVBS/AHD/TVI switchable
- 2.8 mm fixed lens
- Built-in Mic
- Max. IR length 30 m, Smart IR
- IP67, DC12V
| Specifications: | |
|---|---|
| Model Number | DHD80/28RW/30-4-M |
| Camera | |
| Image Sensor | 1 / 2.7 inch CMOS |
| Max. Resolution | 3840 (H) x 2160 (V) |
| Pixel | 8 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100, 000s; NTSC: 1/30 s–1/100, 000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | 0.03 Lux/ F2.0, 30 IRE, 0 Lux IR on |
| Illumination Distance | 30 m (98.4ft) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR light) |
| Pan / Tilt / Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed lens |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F2.0 |
| Field of View | H:105° V:56° D:125° |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.3 ft); |
| DORI | Detect: 75m (246.1 ft) Observe: 30m (98.4 ft) Recognise: 15m (49.2 ft) Identify: 8m (26.2 ft) |
| Day / Night | Auto switch by ICR |
| BLC | BLC / HLC / DWDR |
| WDR | DWDR |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | 2D NR |
| Smart IR | Yes |
| Mirror | Off/ On |
| Privacy Masking | Off / On (8 area, rectangle) |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Port | |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in Mic |
| Power | |
| Power Supply | 12V ±15% DC |
| Power Consumption | Max 4.3 W (12V DC, IR on) |
| Environment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal throughout the whole casing |
| Camera Dimensions | φ94.0 mm × 85.7 mm (φ3.70" × 3.37") |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.
For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.
| Part Number | DHD80/28RW/30-4-M |
| Brand | SPRO |
| Colour | White |
| Housing Style | Turret |
| Camera Resolution | 8 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| ColourNight | No |
| Illumination Type | IR |
| IR Light Distance | up to 30m |
| Ingress Protection | IP67 |
| Video Protocol | 4 in 1 |
| Built-in Mic | Yes |
| Starlight | Yes |
| WDR | Digital |
| POC | No |
