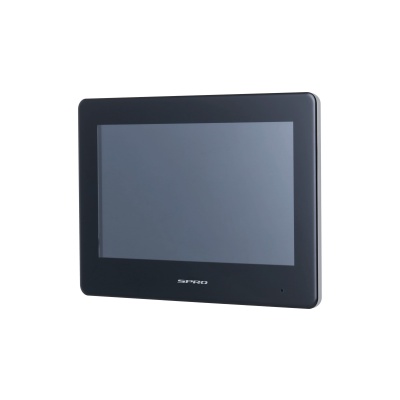

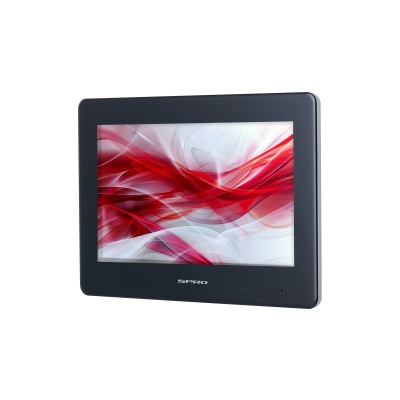

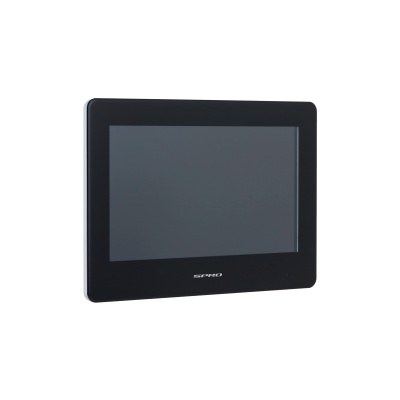

The SPRO 7″ Touch Screen Monitor runs on Linux OS, offering a seamless experience on its 7″ TFT capacitive touch screen with a resolution of 1024×600. This device is equipped for IPC surveillance, provides 6-channel alarm input and a single-channel alarm output, and is compatible with standard PoE for convenient power transmission.
Key Features
• 7″ TFT Capacitive touch screen, 1024×600
• IPC surveillance
• 6-channel alarm input and 1-channel alarm output
• Support standard PoE
| Specifications: | |
|---|---|
| Model Number | VI-MTR03-B |
| Main Processor | Embedded processor |
| Operating System | Embedded Linux operating system |
| Interoperability | ONVIF; SDK |
| Network Protocol | RTSP; RTP; SIP; DNS; SSH |
| ROM | 128 MB |
| RAM | 128 MB |
| CPU | Dual core 1.2 GHz |
| Basic | |
| Screen Type | Capacitive Touchscreen |
| Display | 7”TFT |
| Screen Resolution | 1024x600 |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | 2-way Audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16kHz; 16 Bit |
| Funcion | |
| Communication Mode | Full digital |
| Information Release | Receive and view text information released by the management center |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Number of Extensions | Villa: 9 Apartment: 4 Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Performance | |
| Casing | PC + ABS |
| Port | |
| Alarm Input | 6 |
| alarm Output | 1 |
| Door Bell | Yes (use any alarm input port) |
| Network | One 10 Mbps/100 Mbps Ethernet |
| General | |
| Appearance Colour | Black |
| Power Supply | 12 VDC 1A; Standard PoE (36–57 V, 0.35 A) |
| Installation | Surface Mount |
| Certifications | CE; FCC |
| Dimensions | 189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to 131 °F) |
| Operating Humidity | 10%–95% RH (non-condensing) |
| Operating Altitude | Beneath 3,000 m (9,842.52 ft) |
| Power Consumption | Standby ≤ 2W; working ≤ 6W |
| Net Weight | 0.34 kg (0.74 lb) |
| Gross Weight | 0.58 kg (1.27 lb) |
