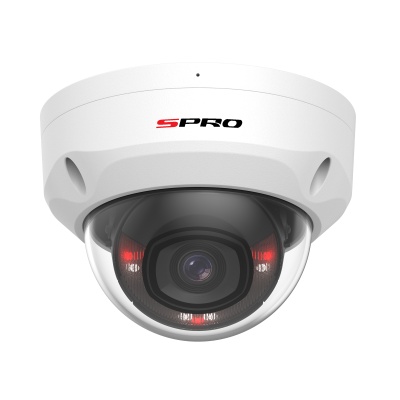

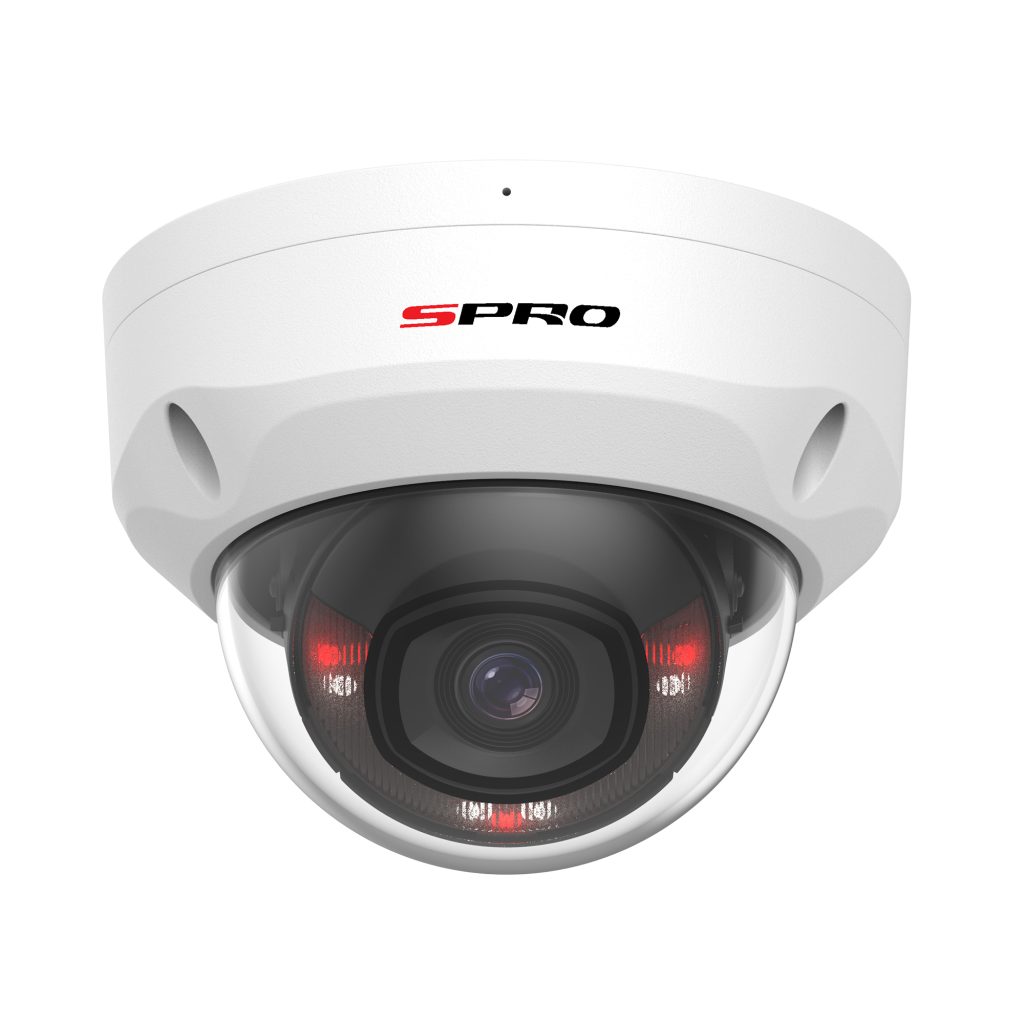

The SPRO 6MP IP Vandal Resistant Dome boasts a sharp 6MP CMOS sensor paired with a 2.8mm fixed lens. Designed for durability, it offers a 30m IR distance, ensuring clear night vision. Its robust build is both IP67 waterproof and IK08 resistant, making it ideal for locations prone to vandalism and harsh weather conditions. This camera combines resilience with top-tier imaging for unmatched security.
Key Features:
• 6MP, 1/2.7″ CMOS image sensor
• 3200 × 1800 @20 fps, and supports 2688×1520 @25 fps
• SMART H.264+/H.265+
• 30 m IR distance
• Built in Microphone
• 12 VDC/PoE power supply
• IP67 and IK08 protection
• Supports human detection
• IP67 and IK08 protection
| Specifications: | |
|---|---|
| Model Number | DHIPD60/28LRV-M-W |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 3200 (H) × 1800 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1/3 s-1/100,000 s |
| Min. Illumination | 0.007 lux@F1.6 (Colour, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR) |
| Illumination On/Off Control | Auto; Manual |
| Illumination Number | 3 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° - Tilt: 0°–65° - Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed-Focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max Aperture | F1.6 |
| Field of View | H: 108°; V: 60°; D: 127° |
| Iris Control | Fixed |
| Close Focus Distance | 1.0 m (3.3 ft) |
| DORI Distance | Detect: 61.6 m (202.10 ft) |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: |
| Stream Capability | 2 streams |
| Resolution | 6M (3200 × 1800); 4M (2880 × 1620/2688 × 1520); 3M |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR) / Colour / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (ROI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Intelligence | |
| Human Detection | Support the classification and accurate detection of human |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Audio | |
| Built-in Microphone | Yes, built-in Microphone |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P; Auto Registration |
| Interoperability | ONVIF (Profile S & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48M) |
| Storage | FTP |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DMSS; |
| Mobile Client | iOS; Android |
| Security | Digest;WSSE;Account lockout;Security logs;Generation and importing of X.509 certification;HTTPS;Trusted boot;Trusted execution;Trusted upgrade |
| Certifications | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC; PoE (802.3af) |
| Power Consumption | Basic: 2.2 W (12 VDC); 3 W (PoE); Max.: 6.7 W (12 VDC); 7.9 W (PoE) (H.265 + intelligence on+ DWDR + illuminator intensity) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK08 |
| Structure | |
| Casing Material | Metal + plastic |
| Product Dimensions | 81 mm × Φ109.9 mm (3.19" × Φ4.33") |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.
For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.
| Part Number | DHIPD60/28LRV-M-W |
| Brand | SPRO |
| Colour | White |
| Housing Style | Vandal Dome |
| Camera Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8 mm |
| ColourNight | 2.0 |
| Illumination Type | Dual |
| White Light Distance | up to 30m |
| IR Light Distance | up to 30m |
| Ingress Protection | IP67 |
| Built-in Mic | Yes |
| Built In Speaker | No |
| SD Card Slot | No |
| Starlight | No |
| WDR | Digital |
| RCA Audio Jack | No |
| Alarm Tracking | No |
| Active Deterrence | No |
| SMD | Human |
| Perimeter Protection | No |
| Tripwire | No |
| Intrusion | No |
| Face Detection | No |
| Face Recognition | No |
| ANPR | No |
| Meta Data | No |
| Flame Detection | No |
| People Counting | No |
| AcuPick | No |
| Heat map | No |
