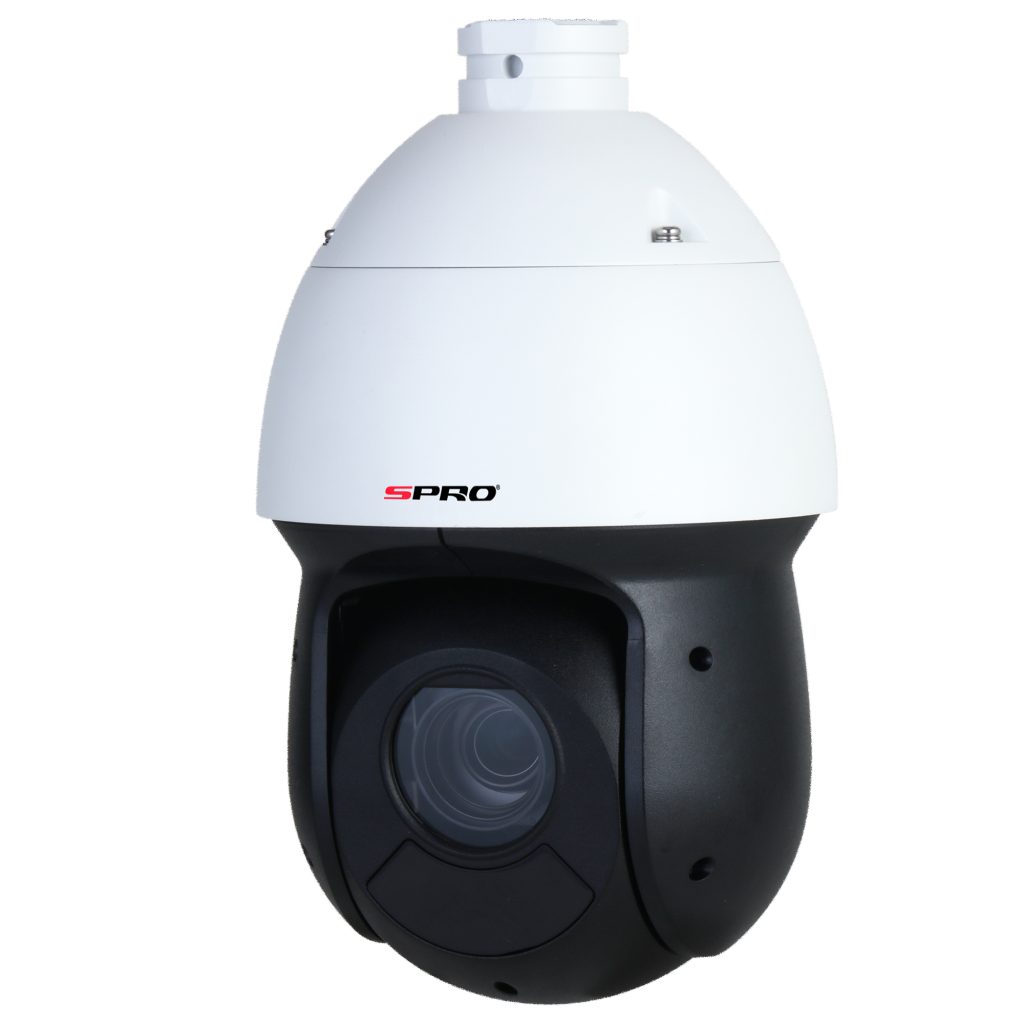

The SPRO 2MP IP PTZ with 25x Zoom features a 1/2.8″ 2 Megapixel STARVIS™ CMOS sensor, ensuring crisp imagery. With a 25x optical zoom and advanced Starlight technology, it provides clarity even in low light. The camera also comes with IR boasting an IR distance of up to 100 metres at night. This PTZ comes with a wall-mount bracket for easy installation.

Specifications:
Model Number	DHIPPTZ20/25XR-V4
Image Sensor	1/2.8" CMOS
Effective Pixels	1920(H) x 1080(V), 2Megapixels
Scanning System	Progressive
Electronic Shutter Speed	1/1 ~ 1/30,000s
Min. Illumination	Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on)
Illumination Distance	100 m (328.08 ft) (IR)
Illuminator On/Off Control	3 (IR)
LENS
Focal Length	4.8 mm–120 mm
Max. Aperture	F1.6–F3.5
Field of View	H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.5°–3.2
Optical Zoom	25x
Focus Control	Auto; semi-auto; manual
Close Focus Distance	0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control	Auto
DORI Distance	Detect 1,613 m (5,291.99 ft) Observe 646 m (2,119.42 ft) Recognize 323 m (1,059.71 ft) Identify 161 m (528.22 ft)
Lens
Focal Length	4.8mm ~ 120mm (25x Optical zoom)
Max Aperture	F1.6~ F4.4
Focus Control	Auto / Manual
Angle of View	H: 62.8°~ 2.6°
Close Focus Distance	100mm~ 1000mm
PTZ
Pan/Tilt/Rotation	Pan: 0° to 360° endless
Manual Control Speed	Pan: 0.1°/s–80°/s Tilt: 0.1°/s–80°/s
Preset Speed	Pan: 80°/s; Tilt: 80°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset;Pattern;Tour;Scan
PTZ Protocol	DH-S Pelco-P/D (Auto recognition)
INTELLIGENCE
IVS (Perimeter Protection)	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification
Face Detection	Supports face detection, capturing pictures, and face enhancement
SMD	Yes
VIDEO
Compression	Smart H.265+;H.265;Smart H.264+;H.264; H.264B;MJPEG(Sub Stream)
Streaming Capability	3 Streams
Resolution	1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 1080p/960p/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/960p/720p@(1–25/30 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 1792 kbps–8192 kbps H.265: 512 kbps–5632 kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
WDR	120dB
HLC	Yes
White Balance	Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp
Gain Control	Auto; manual
Noise Reduction	2D NR; 3D NR
Motion Detection	YES
Region of Interest (RoI)	YES
Image Stabilization	Electronic (EIS)
Defog	Electronic
Digital Zoom	16×
Image Rotation	180 °
Privacy Masking	Up to 24 areas can be set, with up to 8 areas in the same view
S/N Ratio	≥ 55 dB
AUDIO
Audio Compression	G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729
Network
Network Port	RJ-45 (10/100 Base-T)
Network Protocol	HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6; 802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/v3(MIB-2); IGMP;ARP;RTCP;RTP;PPPoE;IP Filter;RTMP;Bonjour;TCP;SMB;NFS
Interoperability	CGI; Dahua SDK; API; SDK; ONVIF (Profle S&G&T)
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage	FTP; Micro SD card (512 GB); NAS
Browser	IE 7 and later versions Chrome Firefox Safari
Management Software	SPRO CSS;DSS;DMSS;IVSS;ConfigTool;NVR
Mobile Client	iOS;Android;iPhone;iPad
CERTIFICATIONS
Certifications	CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4- 2014
PORT
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire)
Alarm Linkage	Capture; preset; tour; pattern; recording alarm digital input; audio; send email
Alarm Event	Motion/Tampering detection; audio detection; network disconnection detection IP conflict detection; memory card state detection memory space detection; power exception detection
Alarm I/O	2/1
Audio I/O	1/1
POWER
Power Supply	12 VDC/3 A (± 10%) PoE (802.3at)
Power Consumption	Basic: 12 W Max.: 20 W (IR light)
ENVIRONMENT
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Protection	IP66, TVS 6000 V lightning proof; surge protection voltage transient protection
STRUCTURE
Product Dimensions	270.4 mm × Φ160.0 mm (10.65" × Φ6.30")
Net Weight	2.4 kg (5.29 lb)
Gross Weight	3.9 kg (8.60 lb)

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 4:30pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call 0121 663 6151 to speak to a member of the team who will be able to assist you.

Part Number	DHIPPTZ20/25XR-V4
Brand	SPRO
Colour	White
Housing Style	PTZ
Camera Resolution	2 Megapixel
Lens Type	Motorised
Lens Size	4.8 - 120 mm
ColourNight	No
Illumination Type	IR
White Light Distance	N/A
IR Light Distance	up to 100m
Ingress Protection	IP66
Built-in Mic	No
Built In Speaker	No
SD Card Slot	512GB
Starlight	Yes
WDR	120dB
RCA Audio Jack	No
Alarm Tracking	No
Active Deterrence	No
SMD	Plus
Perimeter Protection	Yes
Tripwire	Yes
Intrusion	Yes
Face Detection	Yes
Face Recognition	No
ANPR	No
Meta Data	No
Flame Detection	No
People Counting	No
AcuPick	No
Heat map	No
