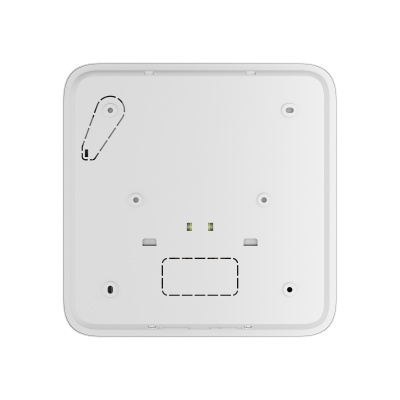

Wireless Grade 3 range extender for large and complex Ajax installations. Extends radio coverage and ensures stable alarm and photo delivery even in challenging environments.

Purpose

• Extends communication between Ajax hubs and wireless devices
• Designed for EN 50131 Grade 3 systems
• Ideal for large facilities, multi-building sites, underground areas, and metal structures

System Capacity

• Range extenders per system: up to 5
• Supported devices: any compatible Ajax wireless devices
• Visual verification: supported (MotionCam series)

Communication

Connection to Hub

• Radio protocols

• Ethernet (can be:
      • primary channel
      • backup channel
      • or only channel)

Wireless Technologies

• Superior Jeweller
      • Commands, alarms, events, telemetry
      • Grade 3 compliant

TurboWings

      • Photo transmission
      • Firmware updates
      • Backup data delivery after reconnection

Radio Performance

• Frequency bands:
      865–869.65 MHz (multiple sub-bands)
• Max ERP: up to 25 mW
•Communication range:
      up to 3,500 m (open space)
• Modulation: GFSK

• Security:
      • Advanced encryption
      • Dynamic keys
      • Device authentication
      • Frequency hopping
      • Jamming detection

Visual Alarm Verification

• Works with MotionCam detectors
• First photo delivery: ~13 seconds (default settings)
• Supports large data transmission via TurboWings

Ethernet Capabilities

Operates fully over Ethernet when radio is unreliable
Suitable for:
      • Underground parking
      • Warehouses
      • Hangars
      • Multi-building facilities

• Supports ExternalAntenna (sold separately)
• Detects antenna damage

Power Supply

Main Power
• 110–240 V AC, 50/60 Hz
• Built-in PSU

Backup Power

• Optional hot-swappable battery (sold separately)
• Backup time:
      • up to 16 hours or
      • up to 60 hours (battery dependent)

• Battery can be replaced without powering down

Sabotage Protection (Grade 3)

• Tamper alarm (opening / detachment)
• Jamming detection
• Communication loss detection
• Within 36 seconds
• Power loss detection with instant switch to battery
• External antenna breakage detection
• Regular device polling
• Minimum interval: 12 seconds

All features comply with EN 50131 Grade 3 requirements.

Operating System

• OS Malevich
• Real-time OS
• Immune to viruses
• Resistant to cyberattacks
• Automatic OTA updates
• Distributes firmware updates to connected devices

Installation & Setup

• Quick setup via Ajax app (≈ 2 minutes)
• No enclosure disassembly
• Built-in spirit level
• Hot-swappable batteries
• All mounting hardware included
• Strain-relief clip for cables

Recommended Use Cases

• Banks
• Offices
• Warehouses
• Jewelry stores
• Large commercial and industrial sites

Compliance & Availability

• Wireless Grade 3 solution
• Certified to EN 50131
• Available only to accredited Ajax partners
