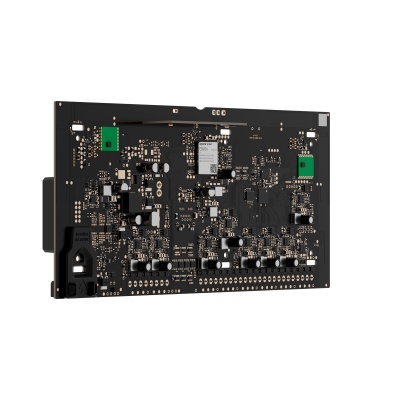

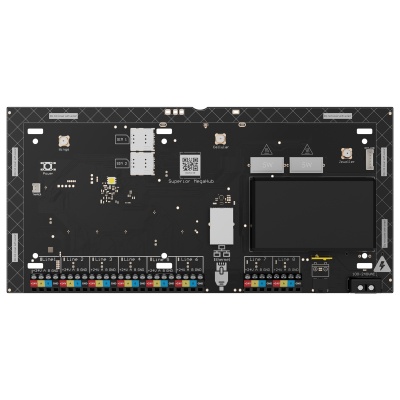

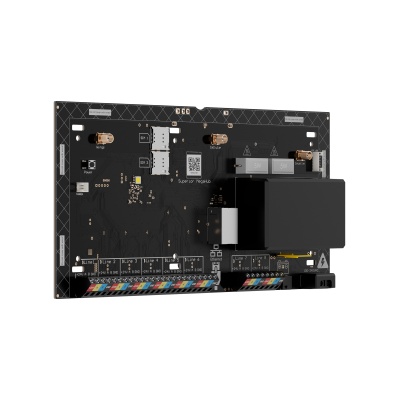

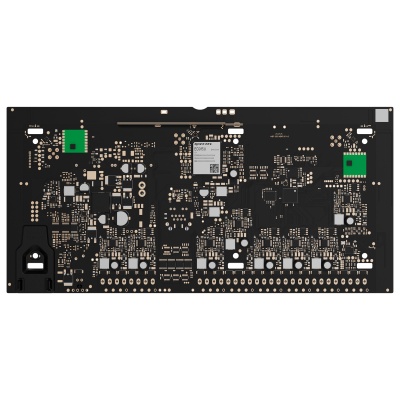

The Ajax Superior MegaHub is an enterprise-level Grade 3 hybrid control panel designed for very large, high-risk, and mission-critical security systems. Built as a control board for installation inside Ajax Case enclosures, MegaHub combines Fibra wired technology, Superior Jeweller wireless communication, and high-capacity power output in a single platform.

With support for up to 9,999 devices, extensive video integration, and advanced redundancy across wiring, radio, and communication paths, Superior MegaHub is purpose-built for airports, data centres, industrial facilities, campuses, and multi-building commercial estates.

Key Features & Benefits

• Grade 3 (EN 50131) compliant hybrid hub
• Ultra-high system capacity – up to 9,999 Ajax devices
• Fibra wired + Superior Jeweller wireless support
• Ring topology for line redundancy and fault tolerance
• Advanced sabotage and tamper protection
• Professional monitoring integration
• Designed for enclosure mounting (Ajax Case D or E)

System Capacity

• Up to 9,999 Ajax devices
      • Up to 10 range extenders
      • Supports “999-ready” and legacy devices
      • Maximum 250 legacy firmware devices

• Up to 36 Ajax NVRs
• Up to 492 Ajax cameras (standalone and via NVRs)
• Up to 224 ONVIF cameras via Ajax NVRs
• Up to 100 third-party IP cameras via RTSP
• Up to 1,000 users
• Up to 100 automation scenarios
• 100 security groups
• 500 rooms

Wired Communication – Fibra Technology

Fibra is Ajax’s proprietary high-security wired communication protocol, engineered for large-scale installations with long cable runs and high device density.

Fibra highlights:

• Two-way encrypted communication
• Instant event and alarm delivery
• Advanced sabotage detection
• Full remote configuration via Ajax apps

Technical specifications:

• 8 Fibra lines
• 4-core cabling
• Up to 2,000 m line length
• Up to 1.2 A per line
• Up to 1.6 A total device load
• 22–25 V DC output
• Maximum rated output: 3 A

Supported topologies:

• Beam (radial)
• Tree
• Ring topology
In case of a cable break, the ring automatically splits into two beams, maintaining system operation and instantly reporting the fault.

Wireless Communication – Superior Jeweller & Wings

Superior Jeweller (Grade 3)

• Long-range wireless communication up to 2,000 m
• Encrypted two-way data exchange
• Frequency hopping and anti-jamming protection
• Device authentication to prevent spoofing
• Adjustable polling from 12 to 300 seconds

Wings Protocol

• High-speed transmission of large data packets
• Optimised for photo verification
• Automatic retransmission of corrupted packets
• Encrypted communication with frequency hopping
• Photo delivery verification

Connectivity & Redundancy

• Ethernet (up to 100 Mbps)
• Wi-Fi 802.11 b/g/n
• Dual SIM cellular (2G / LTE)
• Instant channel switching and parallel operation
• External antenna connectors for:
      • Jeweller
      • Wings
      • LTE

Ethernet is prioritised, with Wi-Fi and cellular operating as active backups to ensure uninterrupted communication.

Monitoring & Notifications

• Supports SIA DC-09, Contact ID, ADEMCO 685, and proprietary protocols
• Alarm, fault, video, automation, and system events
• Configurable notifications via:
      • Push notifications
      • SMS
      • Voice calls

Photo verification modes:

• By alarm
• By scenario
• On demand
• By schedule
• By arming/disarming
• By masking or tamper attempt

Photo delivery in up to 9 seconds, with resolutions up to 960 × 720 px.

Power & Backup

• 100–240 V AC mains input
• 10.5–15 V DC operating range
• Supports 18 Ah backup battery
• Up to 60 hours autonomous operation
• Battery power saver mode to extend backup time
• Advanced battery monitoring and protection

Wireless devices remain battery-powered and unaffected by hub backup load.

Sabotage & Security Protection

• Tamper board support for Ajax Case enclosures
• Jamming detection within 30 seconds
• Device authentication and anti-spoofing
• AES-128 encryption
• Non-volatile memory storing 1,000 events

Installation & Enclosure

• Board-only format (no enclosure supplied)
• Compatible with:
      • Ajax Case D (430) – indoor use
      • Ajax Case E (395) – indoor & outdoor use (coming soon)
• Operating temperature: –25 °C to +55 °C
• High humidity tolerance (up to 95%, non-condensing)

Ideal Applications

• Airports and transport infrastructure
• Data centres and server facilities
• Industrial plants and utilities
• Universities and large campuses
• Warehousing and logistics hubs
• Multi-building commercial estates
