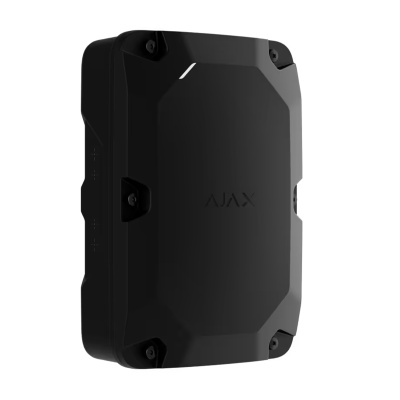

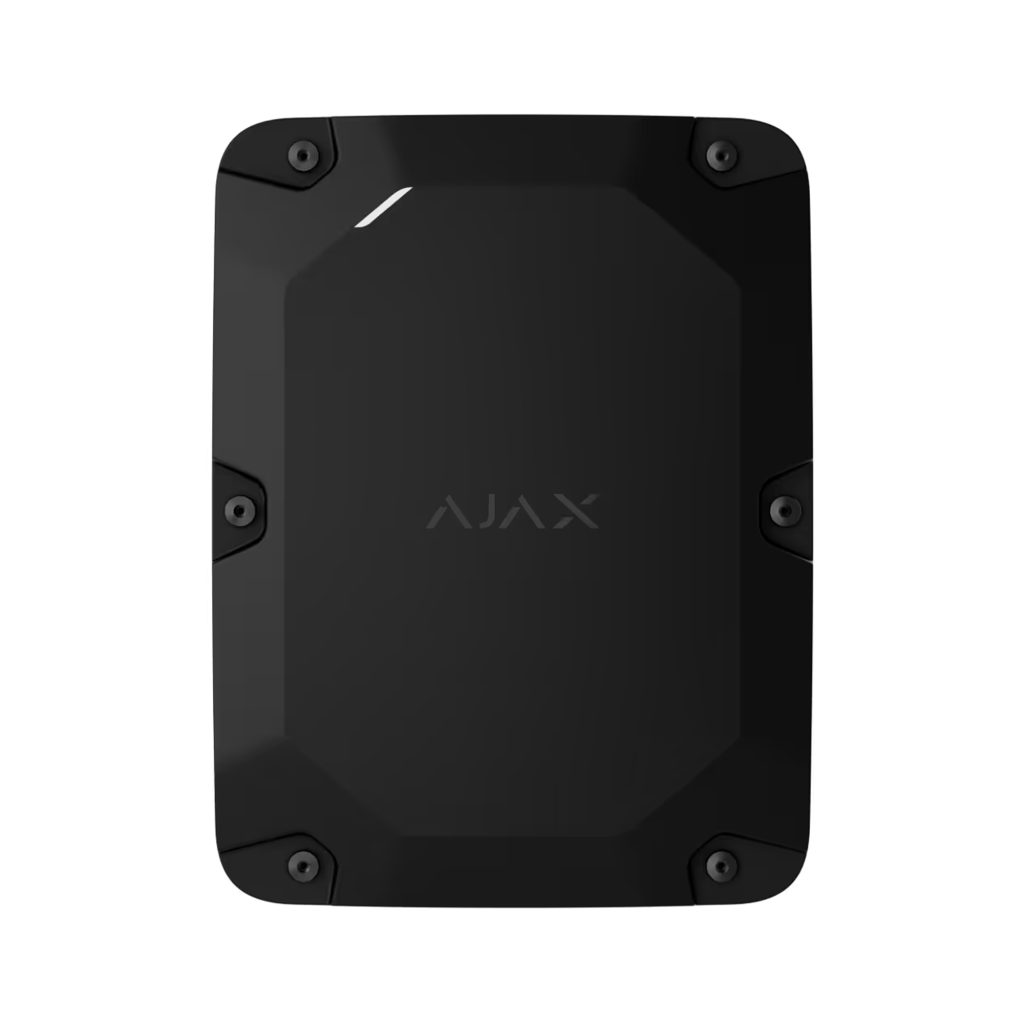

The Ajax Superior Hub (Fibra & Superior Jeweller) is a hybrid Grade 3 control panel engineered for very large, complex, and mission-critical installations. Combining Ajax Fibra wired technology with Superior Jeweller wireless communication, this hub delivers unmatched scalability, resilience, and performance for enterprise-level security systems.

With support for up to 9,999 devices, advanced topology redundancy, and professional monitoring integration, it is purpose-built for airports, campuses, industrial facilities, logistics centres, and large multi-building sites.

Key Features & Benefits

• Hybrid architecture: Fibra (wired) + Superior Jeweller (wireless)
• Massive system capacity – up to 9,999 Ajax devices
Grade 3 (EN 50131) compliance
• Advanced sabotage protection across wired and wireless lines
• Ring topology support for maximum line redundancy
• High user and group limits for enterprise access control
• Fully configurable remotely via Ajax PRO apps

System Capacity

• Up to 9,999 Ajax devices
      • Up to 10 range extenders
      • Supports both legacy and “999-ready” devices
      • Maximum 250 legacy firmware devices per system
• Up to 36 Ajax NVRs
• Up to 492 Ajax cameras (standalone and via NVRs)
• Up to 224 ONVIF cameras via Ajax NVRs
• Up to 100 third-party IP cameras via RTSP
• Up to 1,000 users
• Up to 100 automation scenarios
• 100 security groups
• 500 rooms

Wired Technology – Fibra

Fibra is Ajax’s proprietary wired communication technology, designed for high-security and large-scale deployments.

Key advantages:

• Two-way encrypted communication
• Instant alarm and event delivery
• Advanced sabotage and line break detection
• Remote configuration and diagnostics

Fibra specifications:

• 8 Fibra lines
• 4-core cable
• Line length up to 2,000 m
• Up to 1.2 A per Fibra line
• 1.6 A total device power output
• 22–25 V DC output voltage

Supported topologies:

• Beam (radial)
• Tree
• Ring topology
      If a ring is broken, it automatically splits into two beams, ensuring continuous operation and immediate fault reporting.

Wireless Technology – Superior Jeweller & Wings

Superior Jeweller (Grade 3)

• Encrypted two-way communication
• Enhanced frequency hopping
• Advanced anti-jamming protection
• Long-range radio performance up to 2,000 m
• Dynamic key encryption for data confidentiality

Wings Protocol

• High-speed transmission of large data packets
• Optimised for photo verification
• Automatic packet reload on transmission errors
• Encrypted communication with frequency hopping

Security & Reliability

• Block encryption with dynamic keys for all data
• Device authentication and anti-spoofing
• Adjustable device polling (12–300 seconds)
• Non-volatile memory storing up to 1,000 events
• Instant notifications for line breaks, jamming, or sabotage

Ideal Applications

• Airports and transport hubs
• Universities and campuses
• Industrial and manufacturing facilities
• Logistics warehouses
• Data centres
• Multi-building commercial estates

Why Choose This Hub?

For projects where scale, resilience, and compliance are non-negotiable, this hub offers a level of capacity and reliability unmatched by conventional alarm panels — while maintaining the simplicity and remote management Ajax is known for.
