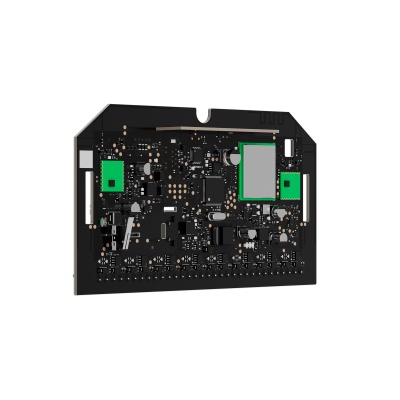

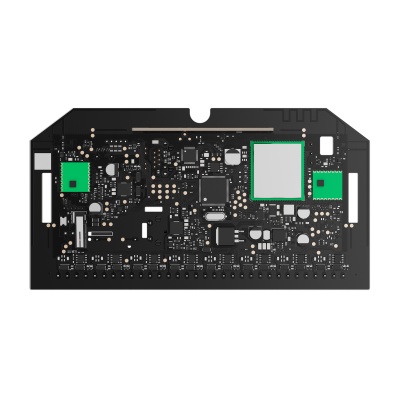

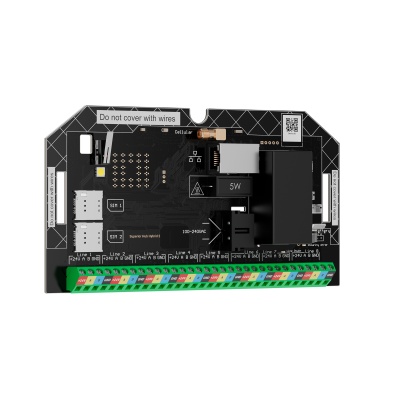

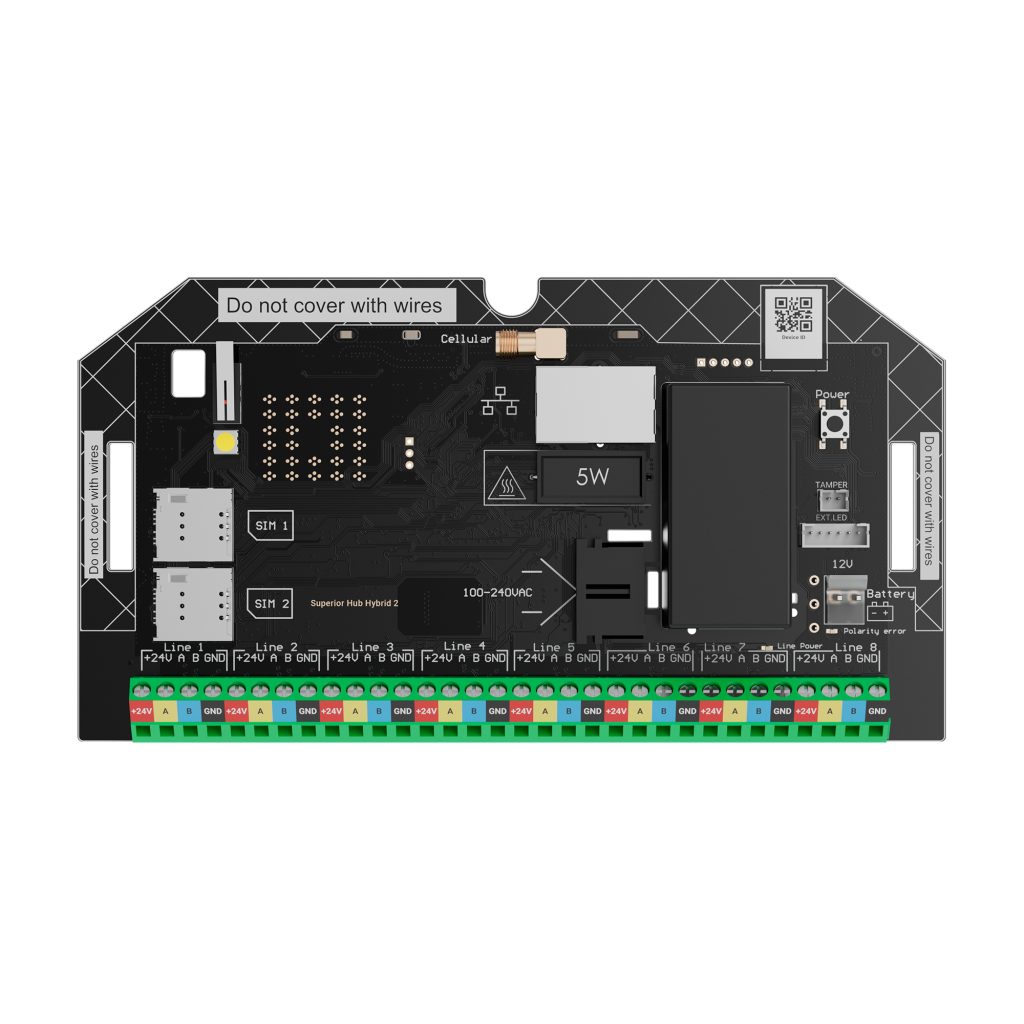

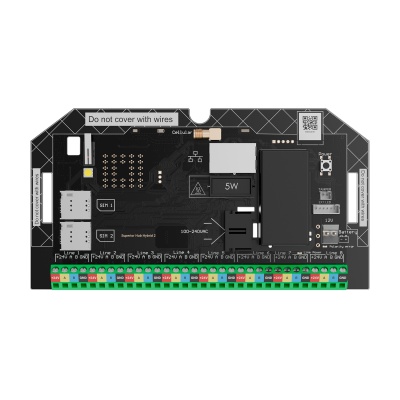

The Ajax Superior Hub Hybrid 2 (without casing) is a Grade 3 (EN 50131) hybrid control panel board, designed for installation inside a compatible Ajax enclosure. It delivers the same performance and capacity as the cased version of Hub Hybrid 2, while offering greater flexibility for custom cabinet installations, panel upgrades, and space-restricted builds.

Supporting both Fibra wired devices and Superior Jeweller wireless devices, this hub is ideal for professional installers working on medium to large commercial systems where enclosure choice is critical.

Key Features & Benefits

• Board-only version for installation in Ajax Case enclosures
• Hybrid Fibra + Superior Jeweller architecture
• Grade 3 (EN 50131) compliant
• Supports up to 250 devices
• Photo verification via Wings protocol
• Dual SIM cellular redundancy
• Advanced sabotage and anti-jamming protection

System Capacity

• Up to 250 Ajax devices
      • Up to 200 wired devices per Fibra line
      • Up to 5 wireless range extenders
• Up to 36 Ajax NVRs
• Up to 492 Ajax cameras (standalone and via NVRs)
• Up to 224 ONVIF cameras via Ajax NVRs
• Up to 100 third-party IP cameras via RTSP
• Up to 200 users
• 64 automation scenarios
• 25 security groups
• 50 rooms
• Event log stores up to 1,000 events

Wired Communication – Fibra

Fibra provides secure, two-way wired communication for high-density and long-distance installations.

Fibra features:

• Encrypted two-way communication
• Advanced sabotage protection
• Instant alarm and event delivery
• Remote configuration via Ajax apps

Technical specifications:

• 8 Fibra lines
• 4-core cabling
• Up to 2,000 m line length
• Total device power: up to 14.4 W
• 23–25.1 V DC output
• Maximum rated output: 0.53 A

Supported topologies:

• Beam (radial)
• Tree
• Ring topology for line redundancy and fault tolerance

Wireless Communication – Superior Jeweller & Wings

Superior Jeweller (Grade 3)

• Two-way encrypted communication
• Frequency hopping and anti-jamming protection
• Radio range up to 3,500 m (open space)
• Adjustable polling from 12 to 300 seconds

Wings Protocol

• High-speed data transfer for photo verification
• Automatic retransmission on transmission errors
• Encrypted communication with integrity checks
• Reliable photo delivery confirmation

Connectivity & Redundancy

• Ethernet (up to 100 Mbps)
• Dual SIM cellular:
      • 2G / 3G / LTE support
• Instant switching between communication paths
• Parallel channel operation for increased reliability
• External LTE antenna support (optional)

Ethernet is prioritised, with cellular acting as an automatic failover.

Monitoring & Notifications

• Supports SIA DC-09, Contact ID, ADEMCO 685, and proprietary protocols
• Alarm, fault, video, automation, and system events
• Configurable notifications via:
      • Push notifications
      • SMS
      • Voice calls

Photo verification modes:

• By alarm
• By scenario
• On demand
• By schedule
• By arming/disarming
• By anti-masking or tamper events

Photo delivery in up to 9 seconds, with resolutions up to 960 × 720 px.

Power & Backup

• 100–240 V AC mains input
• 10.5–15 V DC operating range
• Supports 7 Ah backup battery (via enclosure)
• Up to 60 hours of autonomous operation
• Battery power saver mode to extend backup time

Wireless devices remain battery-powered and do not load the hub power supply.

Sabotage & Security Protection

• Tamper board connector for enclosure monitoring
• Device authentication to prevent spoofing
• Jamming detection with alerts within 30 seconds
• AES-128 encryption
• Non-volatile memory for event storage

Installation & Enclosure Compatibility

• Indoor installation only
• Designed for installation in Ajax Case D (sold separately)
• Compact board format for flexible layouts
• Operating temperature: –10 °C to +40 °C

Ideal Applications

• Commercial and office environments
• Retail and hospitality sites
• Apartment buildings and HMOs
• Panel upgrades and retrofits
• Custom cabinet and enclosure builds
