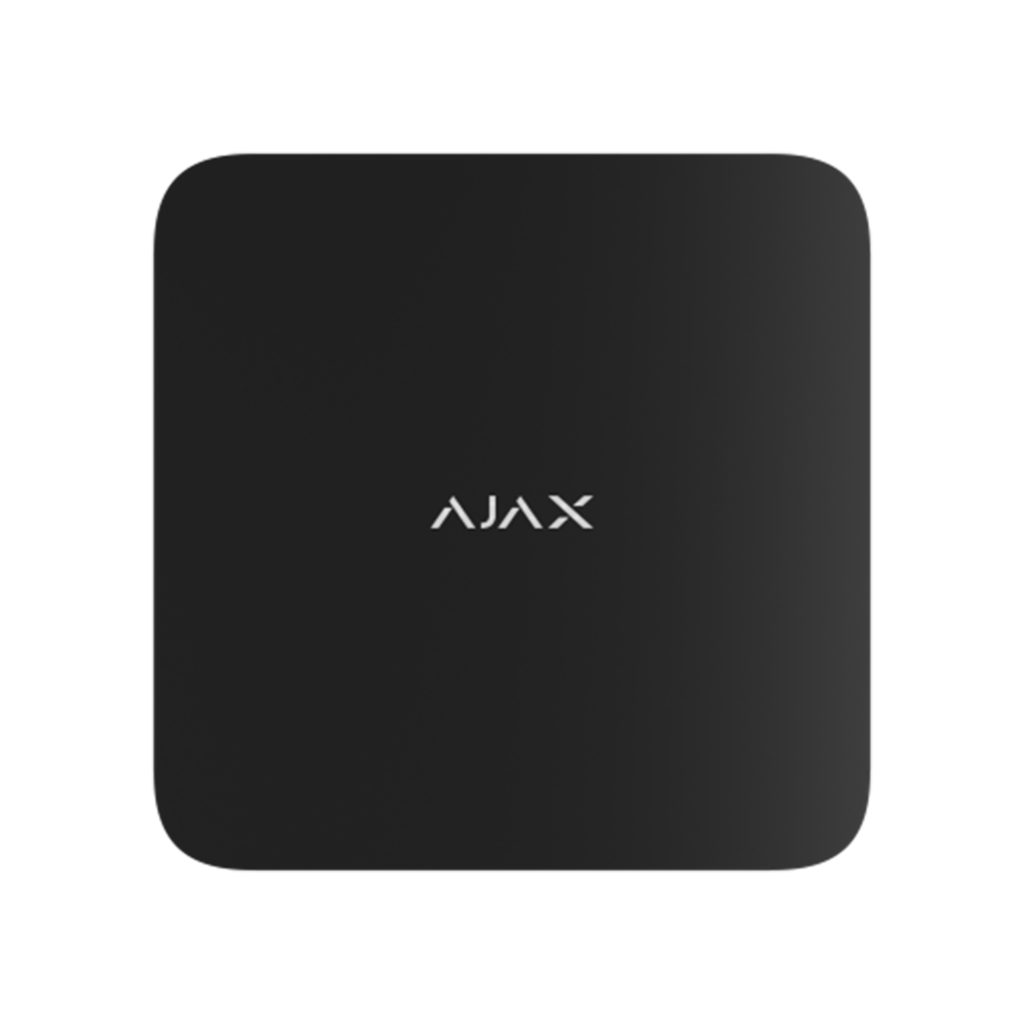

The Ajax Superior Hub G3 Jeweller is a next-generation, Grade 3 (EN 50131) wireless control panel designed for large-scale, high-security installations. Built for professional installers and monitoring centres, it delivers exceptional capacity, redundancy, and communication reliability — making it ideal for commercial, industrial, and high-risk residential projects.

Supporting photo verification, advanced automation, and multi-path connectivity, the Hub G3 provides fast alarm delivery, secure data transmission, and flexible system expansion across complex sites.

Key Features & Benefits

• Grade 3 certified security using Superior Jeweller protocol
• Photo verification with delivery in as little as 4.5 seconds
• Triple-path communication: Ethernet, Wi-Fi, and dual SIM (2G/LTE)
• Parallel channel operation with automatic failover for maximum uptime
• Exceptional system capacity for large installations
• Enhanced anti-jamming and frequency hopping
• Designed exclusively for professional use

System Capacity

• Up to 250 Ajax devices
      • Up to 5 range extenders
      • Up to 10 sirens (non-Superior Jeweller)
      • Up to 50 keypads with built-in siren (non-Superior Jeweller)
• Up to 36 Ajax NVRs
• Up to 492 Ajax cameras (via NVRs and standalone)
• Up to 224 ONVIF cameras via Ajax NVRs
• Up to 10 third-party IP cameras via RTSP
• Up to 200 users
• Up to 64 automation scenarios
• 25 security groups and 50 rooms

Wireless & Communication Technology

• Superior Jeweller – encrypted Grade 3 radio protocol
• Jeweller – support for legacy devices
• TurboWings & Wings – high-speed photo and data transfer
• VoRF – proprietary wireless audio streaming
• Radio range up to 3,500 m (open space)
• Advanced encryption and device authentication
• Enhanced frequency hopping is enabled when all devices use Superior Jeweller, ensuring superior resistance to interference and jamming.

Connectivity & Redundancy

• Ethernet (up to 100 Mbps)
• Wi-Fi 802.11 b/g/n
• Dual SIM cellular (2G & LTE)
• Instant switching between all channels
• External antenna connectors for Jeweller, Wings, and LTE

Communication channels are prioritised and operate in parallel, with Ethernet handling the majority of traffic for optimal performance.

Monitoring & Integration

• Supports SIA DC-09, Contact ID, ADEMCO 685, and proprietary protocols
• Full compatibility with professional monitoring centres
• Alarm, fault, video, automation, and system event reporting
• Configurable notifications via push, SMS, and voice calls

Power & Reliability

• 110–240 V AC mains power
• Optional Superior Internal Battery:
      • Up to 16 or 60 hours standard operation
      • Up to 100 or 300 hours in battery-saving mode
• Tamper protection and real-time jamming detection
• Non-volatile memory stores up to 1,000 events

Installation & Design

• Indoor installation only
• Compact enclosure: 216 × 216 × 45 mm
• IP30 / IK06 protection
• Available in black or white
• Includes SmartBracket mounting panel and installation kit

Ideal For

• Commercial and industrial premises
• High-risk residential properties
• Multi-tenant buildings
• Installations requiring Grade 3 compliance, photo verification, and extensive scalability
