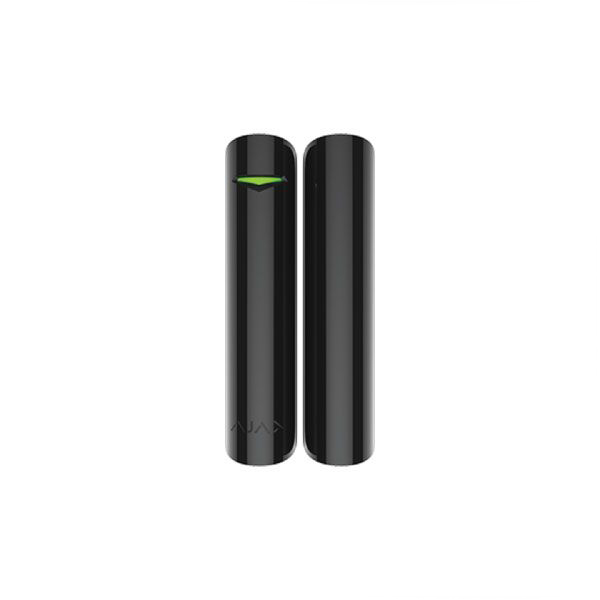

Wireless Grade 3 opening detector with reed switch, shock, tilt, and magnetic masking protection. Designed for high-security indoor installations.

Purpose

Detects:
• Door and window opening
• Shock / impact
• Tilt (inclination change)
• Magnetic masking attempts
• Certified for EN 50131 Grade 3
• Indoor use only

Communication

Wireless Protocols

Superior Jeweller
• Commands, alarms, events
• Grade 3 compliant

Key features

• Two-way communication
• Advanced sabotage protection
• Dynamic-key encryption
• Instant notifications
• Remote configuration via Ajax apps

Radio performance

• Frequency bands:
      865–869.65 MHz (multiple sub-bands)
• Max ERP: up to 20 mW
• Range: up to 3,000 m (open space)
• Modulation: GFSK

Security:

      • Encryption
      • Frequency hopping
      • Anti-jamming
      • Device authentication

Wings

• Used for firmware updates

Key features

• Two-way communication
• Encrypted data transfer
• Data packet integrity checks
• Automatic packet reload on errors

Radio performance

• Range: up to 2,000 m (open space)
• Same frequency bands and security mechanisms as Jeweller

Detection & Sensors

Sensitive Elements
• 2 × reed switches (opening detection)
• 1 × accelerometer (shock & tilt)
• 1 × magnetic masking sensor

Opening Detection

• Magnet can be installed on left or right side
• Protection against reed switch chattering
      • Ignores vibrations up to 0.15 s

Shock Detection

• Sensitivity: 3 levels (configurable)
• Option to ignore single impacts

Detection radius (depends on surface & sensitivity)

Surface                      High sensitivity                     ​​​​​​​ Low sensitivity
Framed glass                      1.2 m                                        1.0 m
Wooden plate                      1.2 m                                        1.0 m
Concrete plate                     0.75 m                                     0.5 m

Tilt Detection

• Activation threshold: 5°–25°
• Adjustable via Ajax app

Magnetic Masking Protection
• Detects attempts to block or replace the main magnet with a fraudulent magnet

Additional Detector Input

• Connector for wired NC detector
• Supports Roller Shutter mode

User Notifications

• Chime function
      • When system is disarmed, sirens emit a sound upon opening detection
      • Configurable in Ajax app

Sabotage Protection

• Tamper alarm (removal or detachment)
• Magnetic masking detection
• Device authentication (anti-spoofing)
• Jamming and interference protection
• Connection loss detection: after 36 seconds
• Holding screw secures detector to SmartBracket

Power Supply

Battery

      1 × CR123A (pre-installed)
      Manufacturer: Panasonic

Battery Performance

      Battery life: up to 4 years
      Capacity: 1,550 mAh

Voltage thresholds

• Operating: 2.3–3.2 V
• Nominal: 3.0 V
• Low battery alert: 2.5 V
• Recovery: 2.7 V
• End-of-life: 2.3 V (device shuts down)

Electrical Characteristics

• Quiescent current: 33 μA
• Max current: 7 mA
• Peak current: 27 mA

Enclosure & Environment

Physical Specs

• Detector dimensions: 103 × 22 × 21 mm
• Magnet dimensions: 103 × 22 × 21 mm
• Weight: 39 g
• Colours: Black / White

Environmental Limits

• Operating temperature: −10 °C to +40 °C
• Humidity: up to 75%
• Protection class: IP30
I• mpact resistance: IK04

Complete Set

• Superior DoorProtect G3 Jeweller
• SmartBracket mounting panel
• CR123A battery (pre-installed)
• Magnet
• Connector for third-party detector
• Installation kit
• Quick start guide
