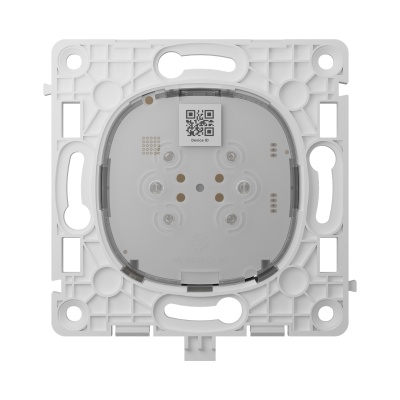

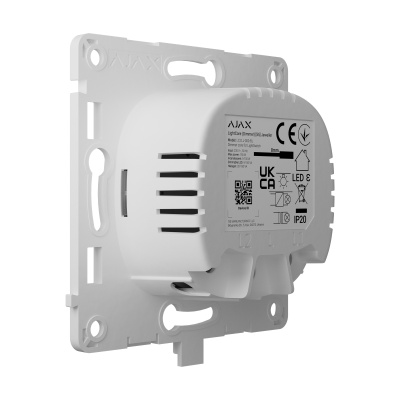

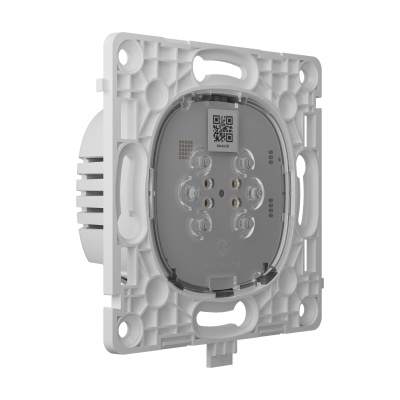

Smart touch dimmer switch for adjustable lighting control.

What it is

• Smart touch dimmer for controlling and adjusting light brightness

• Allows smooth dimming directly from the panel or via the Ajax app

• Can be installed as a standalone device or combined with other Ajax switches and outlets

• Saves the last brightness level when turned off

Design & configuration

• Available in horizontal and vertical versions

• Can be installed individually or in multi-gang frames

• Frames available for 2, 3, 4, or 5 devices

• Wide range of color options (black, white, grey, ivory, olive, etc.)

• Modern glass touch-sensitive panel with dimming slider

Key features

• Works without a neutral wire (phase wire only required)

• Power range: 8–150 VA

• Brightness adjustment:

  • By sliding/long press on the touch panel

  • Via Ajax apps

• Adjustable minimum and maximum brightness levels

• Optional backlight (can be disabled in the app)

• Remembers the last set brightness level

Supported lighting types

• Incandescent bulbs

• Dimmable LED lamps

• Halogen lamps

⚠ Works with one type of lamp per circuit (mixed lamp types are not supported).
A bypass accessory may be required for some low-load LED lamps.

Automation & smart functions

Supports automation scenarios such as:

• Scheduled actions

• Reactions to alarm events

• Reactions to security mode changes

• Control via another LightSwitch or Ajax button

• Temperature-based scenarios

• Humidity and CO₂ scenarios (with compatible devices)

Communication

• Uses secure Jeweller wireless technology

• Two-way encrypted communication

• Frequency hopping to prevent interference and jamming

• Radio range up to 900 m in open space

• Remote control and configuration via Ajax apps

• Firmware updates via Wings wireless technology

Safety & protection

• Device authentication against spoofing

• Communication loss detection

• Overcurrent protection

• Overheating protection (automatically switches off if temperature is too high)

Power supply

• 230 V~, 50 Hz

• No neutral wire required

• Power consumption up to 250 mW

Installation

• Designed for indoor use

• European 55 mm form factor

• Professional installation recommended

• Components (dimmer core, touch panel, frame) are purchased separately and easily assembled
