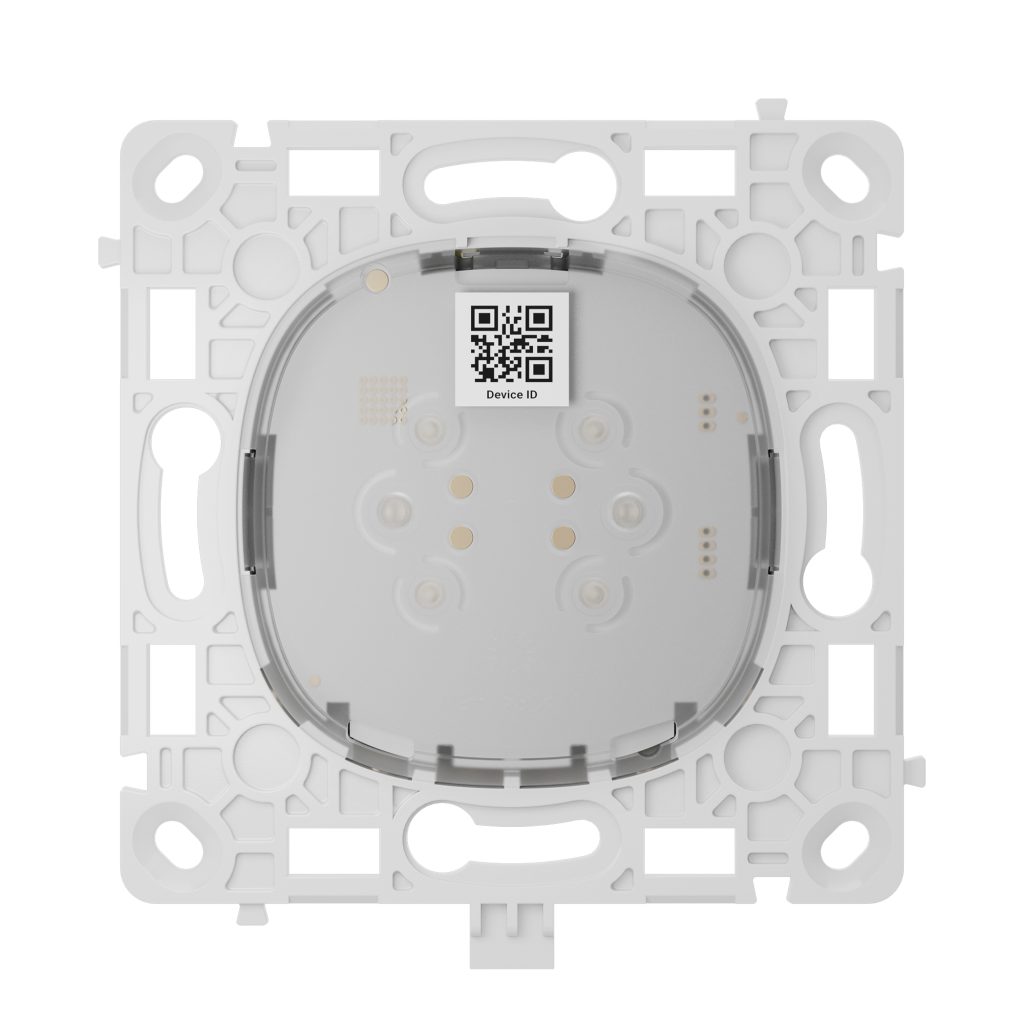

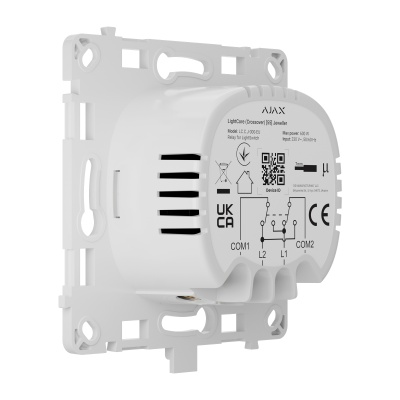

Smart touch crossover light switch for multi-location lighting control.

What it is

• Smart touch switch with crossover functionality

• Used in multi-way lighting systems (control from three or more locations)

• Works together with 2-way switches

• Can be installed as a standalone device or combined with other Ajax switches and outlets

• Controlled via touch panel or Ajax app

Design & configuration

• Available in horizontal and vertical versions

• Can be installed individually or in multi-gang frames

• Frames available for 2, 3, 4, or 5 devices

• Wide range of color options (black, white, grey, ivory, olive, etc.)

• Modern glass touch-sensitive panel

Key features

• Works without a neutral wire (live wire only required)

• Suitable for lighting loads from 7 W to 600 W

• Contactless touch activation (responds when a hand approaches)

• Optional night backlight (can be disabled in the app)

• Built-in protection against low-power or incompatible lighting

• Capacitor included for low-power lighting devices

Automation & smart functions

Supports automation scenarios such as:

• Scheduled on/off actions

• Reactions to alarm events

• Reactions to security mode changes

• Control via another Ajax switch or button

• Temperature-based scenarios

• Humidity and CO₂ scenarios (with compatible devices)

Communication

• Uses secure Jeweller wireless technology

• Two-way encrypted communication

• Frequency hopping to prevent interference and jamming

• Radio range up to 1,100 m in open space

• Remote control and configuration via Ajax apps

• Firmware updates via Wings wireless technology

Safety & protection

• Device authentication against spoofing

• Communication loss detection

• Overheating protection (automatically switches off if temperature is too high)

Power supply

• 230 V~, 50/60 Hz

• No neutral wire required

• Maximum load up to 600 W

Installation

• Designed for indoor use

• European 55 mm form factor

• Professional installation recommended

• Components (relay, touch panel, frame) are purchased separately and easily assembled
