The Ajax EN54 Fire Hub Jeweller is a fully wireless, touchscreen control panel designed for commercial-grade fire protection. It serves as the central control and indicating equipment (CIE) for the Ajax EN54-certified fire alarm system, combining advanced communication, intuitive controls, and seamless integration with intrusion, video, and automation devices.

Key Features:

• Certified to EN 54-2, EN 54-4, EN 54-21, EN 54-25 & EN 50131 (Grade 2)

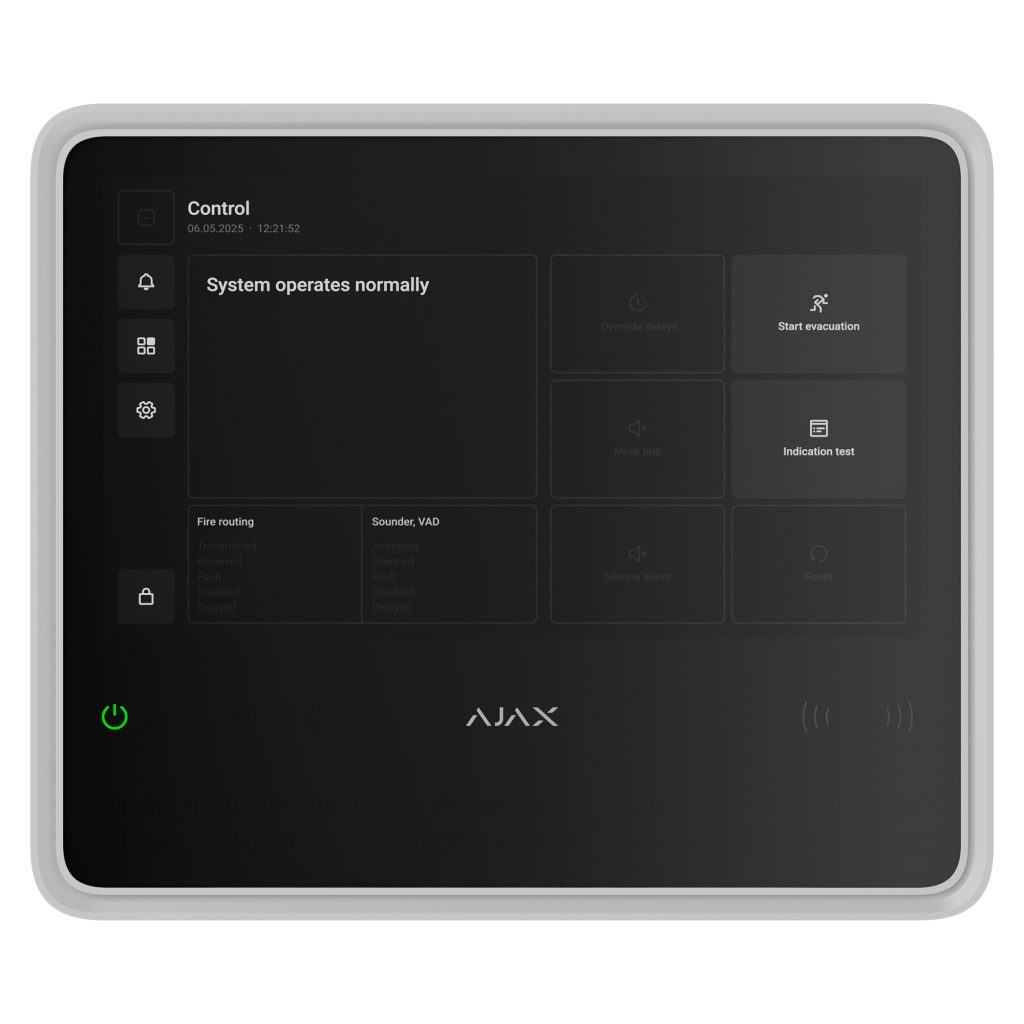

• 10.1” IPS touchscreen with intuitive interface for fire event control
• Connects up to 200 wireless devices across 40 fire zones
• Multi-channel communication: Ethernet, Wi-Fi & dual SIM (2G/3G/4G)
• Jeweller radio protocol with up to 2,000 m wireless range
• 24h or 72h battery backup with optional EN54 Internal Battery
• Built-in buzzer & LED indicators for alarms, faults & disablements
• Supports remote control & configuration via Ajax apps
• Compatible with MotionCam & photo verification for visual alerts
• EN54 ReX support for range extension up to 35 km² with 5 extender
