Communication protocol Fibra

The new wired line of Fibra devices has inherited all the advantages of the Jeweller wireless line. Data transmission that is encrypted and protected from sabotage, unprecedented range and energy efficiency, remote control and maintenance, the fastest possible installation. Fibra technology allows building complex protection regardless of facility size, steel or concrete obstructions. Security is enhanced by informative notifications, photo verification of alarms, real-time system control in the app, and automation scenarios.

More installation options

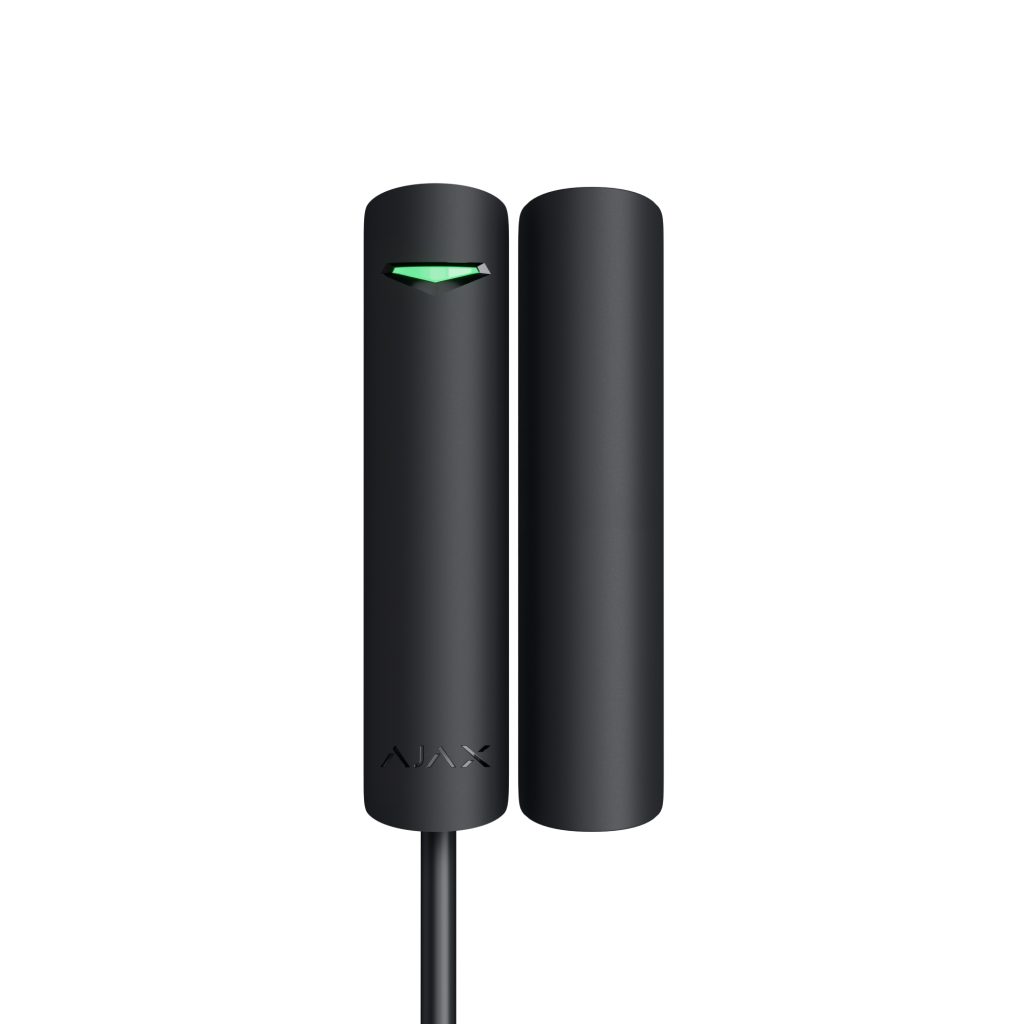

DoorProtect Fibra has two reed switches, which allows you to install a magnet on both the left and right side of the detector. Note that DoorProtect Fibra works with one magnet on one side only. The sensitive element of the detector is a reed switch (sealed contact). This is a small flask with an open contact group inside. When a magnet is brought to the detector, a magnetic field is generated and the detector contacts are magnetised, attracted, and closed. Opening the flap or door moves the magnet away from the reed switch, which opens the circuit, and the detector detects opening.It takes a single magnet for the DoorProtect Fibra detector to create a magnetic field. Use a small or large magnet, depending on the conditions at the installation site.

Additional NC input for connecting a third-party detector

A third-party wired NC detector (normally closed detector) can be connected to DoorProtect Fibra. It can be any type of detector: motion, opening, or vibration.

Key Features

• More installation options with 2 bundled magnets
• Protection against reed switch chattering
• Energy consumption up to 45 μA
• Remote control and setup
• Two reed switches to use magnet from left or right side of the detector
• Additional NC input for connecting a third-party detector
• Temperature compensation
• Two colours casing
• Fibra line connection up to 2,000 m
• Data-rich notifications
