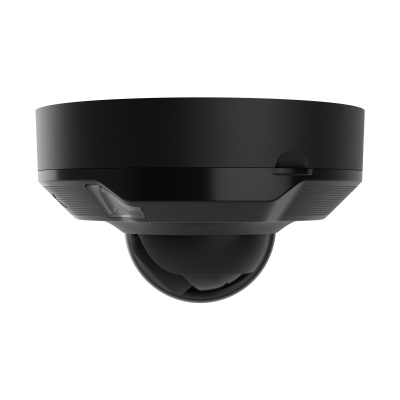

Wired AI-powered IP camera with 110° viewing angle, hybrid illumination, True WDR, built-in microphone, and PoE / 12 V. Suitable for indoor and outdoor use.

Camera

• Image sensor: 8 MP CMOS (1/2.7″)

• Lens: 2.8 mm, fixed focus

• Aperture: f/1.6

• Viewing angle:

  • Horizontal: 110°

  • Vertical: 56°

  • Diagonal: 126°

DORI distances

• Detection: 90 m

• Observation: 36 m

• Recognition: 18 m

• Identification: 9 m

Illumination

• White LED: up to 15 m

• IR LED: up to 15 m

• Automatic light intensity adjustment to prevent overexposure

Low-light performance

• Color: 0.005 lx

• Black & White: 0 lx

• SNR: > 52 dB

Video

• Resolutions:

  • 8 MP (3840 × 2160)

  • 6 MP (3072 × 1728)

  • 5 MP (2944 × 1656, 2880 × 1620, 2592 × 1944)

  • 4 MP (2560 × 1440)

  • 3 MP (2304 × 1296)

  • 2 MP (1920 × 1080)

  • 0.6 MP (1024 × 576)

• Frame rate: up to 20 fps

• Video codec: H.265 / H.264

• Dynamic range: 120 dB (True WDR)

• Image rotation: 0° / 180°

Storage

• microSD card support (up to 256 GB, Class V30 or higher)

• Compatible with Ajax NVR

• Memory card not included

Audio

• Built-in microphone

• Audio codecs: G711-ULAW, G711-ALAW, G726, G722

Smart Features

• Motion detection

• AI object detection:

  • People

  • Pets

  • Vehicles

• Alarm-triggered recording scenarios

• JetSparrow peer-to-peer video streaming

Network & Integration

• 1 × RJ-45 Ethernet (10/100 Mbps)

• ONVIF (Profile S / basic Profile T support)

• Compatible with third-party VMS

• Secure cloud authentication

Security

• Encrypted connection (mTLS)

• Secure Boot

• Signed OTA firmware updates

• Advanced privacy and access control settings

Power

• PoE: 802.3af/at

  • Max: 8.2 W

  • Avg: 7.7 W

• 12 V DC: 12 V ±20%, 1 A

  • Max: 7.1 W

  • Avg: 6.7 W

Enclosure

• Dimensions: 114 × 114 × 67 mm

• Weight: 430 g

• Operating temperature: −30 °C to +60 °C

• Humidity: up to 90%

• Protection class: IP65, IK08

• Colors: Black / White
