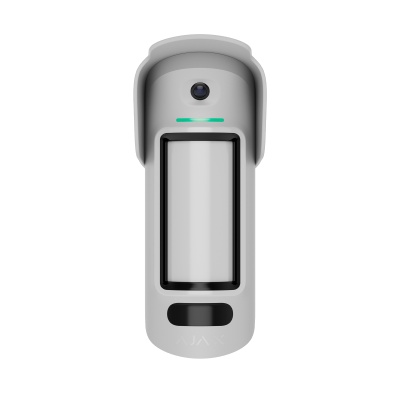

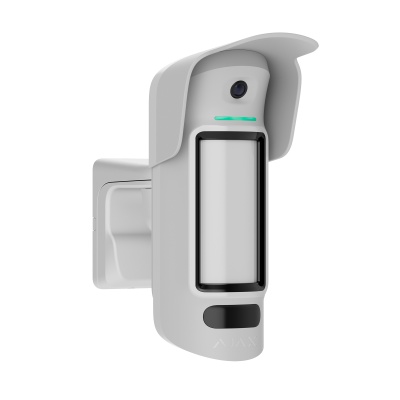

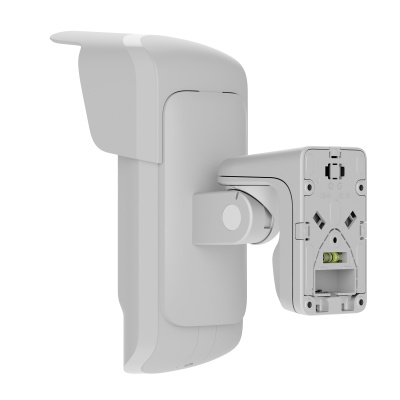

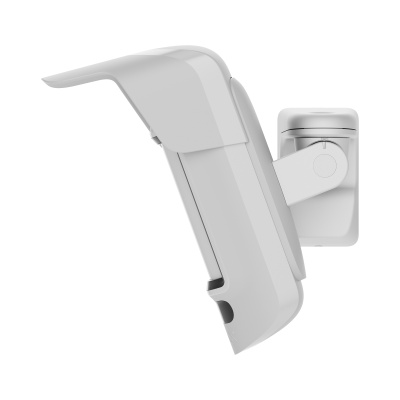

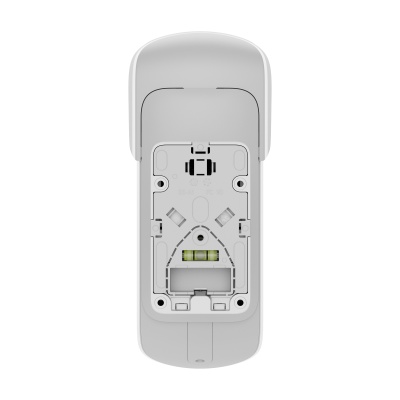

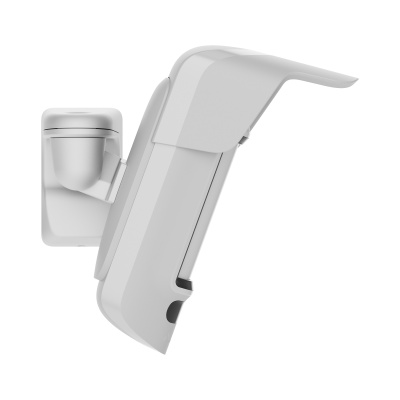

Wireless dual-technology curtain motion detector with photo verification for outdoor use at 2–4 m height.

What it is

• Motion detector that combines PIR and K-band microwave sensors for reliable detection
• Built-in camera allows photo verification of alarms
• Designed for outdoor gates, windows, and other sensitive areas

Key features

• Two-way wireless communication with advanced encryption
• Tamper protection against removal or sabotage
• Anti-masking and anti-spoofing to detect attempts to block or trick the detector
• Adjustable sensitivity (3 levels)
• SmartDetect software reduces false alarms
• Temperature compensation for reliable operation from −25 °C to +60 °C

Detection & coverage

• Motion detection distance: up to 15 m
• Main detection zone angles: horizontal 7°, vertical 73°
• Pre-alarm detection zone angles: horizontal 43°, vertical 88°
• Motion speed detection: 0.3–2 m/s
• Recommended installation height: 2–4 m
• Sensors should be directed perpendicular to the expected intrusion path

Photo verification

• Photos triggered by alarm, schedule, scenario, arming/disarming, or on demand
• Adjustable resolution: 320 × 240 px (default) or 640 × 480 px
• Camera angles: horizontal 121°, vertical 92.5°
• HDR and IR illumination for better image quality in low light
• Photo series: 1–5 images depending on resolution
• Photo delivery: 9–20 seconds depending on resolution

Communication & range

• Works with Ajax hubs using Jeweller protocol
• Radio range up to 1,700 m in open space
• Frequency hopping prevents interference and jamming
• Firmware updates via Wings wireless technology

Power & battery

• Powered by standard Ajax-compatible batteries (pre-installed)
• Battery life depends on usage

Build & environment

• Designed for outdoor use
• Operating temperature: −25 °C to +60 °C
• Indoor/outdoor humidity: up to 95%
• Protective casing suitable for harsh environments
