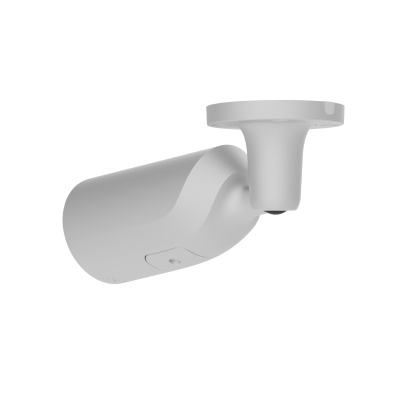

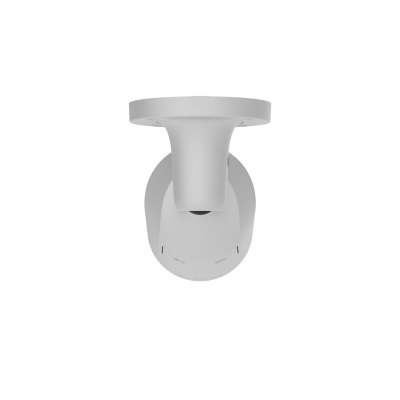

Wired AI-powered 8 MP IP camera with fixed 2.8 mm lens, 110° wide viewing angle, hybrid IR/white illumination, built-in microphone, and PoE/12 V power supply. Suitable for indoor and outdoor use.

Overview

• 8 MP CMOS sensor (up to 3840 × 2160)

• Fixed 2.8 mm lens

• 110° horizontal viewing angle

• Hybrid illumination (IR + white LED)

• True WDR (120 dB)

• Built-in microphone

• PoE or 12 V DC power supply

• Weather-resistant housing

• Available in Black and White

Optics & Image

• Focal length: 2.8 mm (fixed)

• Aperture: f/1.6

• Field of view: 110° (H) / 56° (V) / 126° (D)

• IR illumination range: up to 50 m

• White LED illumination range: up to 50 m

• Minimum illumination: 0.005 lx (color), 0 lx (B/W)

• Intelligent lighting control prevents overexposure

• Signal-to-noise ratio: > 52 dB

DORI distances (approx.):

• Detection: 90 m

• Observation: 36 m

• Recognition: 18 m

• Identification: 9 m

Video

• Resolution up to 8 MP (4K)

• Frame rate: up to 20 fps

• Video compression: H.265 / H.264

• Image rotation: 0° / 180°

AI & Analytics

• Motion detection

• AI object detection:

  • People

  • Pets

  • Vehicles

Storage

• Supports microSD cards up to 256 GB (Class V30 or higher)

• Compatible with Ajax NVR

• Memory card not included

Audio

• Built-in microphone

• Supports standard audio codecs

Network & Integration

• 1 × RJ45 Ethernet (10/100 Mbps)

• ONVIF (Profile S/T) support

• Compatible with third-party VMS

• Secure encrypted video transmission

Security & Protection

• Encrypted communication (mTLS)

• Secure authentication via cloud

• Secure Boot & signed firmware updates

Power

• PoE (802.3af/at)

• 12 V DC external power option

• PoE consumption: up to 8.1 W

• 12 V DC consumption: up to 7.0 W

Physical Specifications

• Dimensions: 198 × 76 × 76 mm

• Weight: 550 g

• Operating temperature: −30 °C to +60 °C

• Operating humidity: up to 90%

• Protection class: IP65

• Impact protection: IK08
